Description

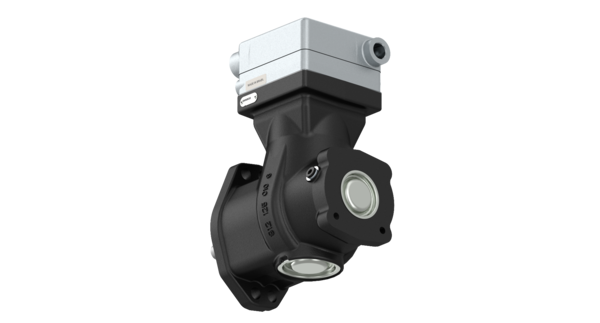

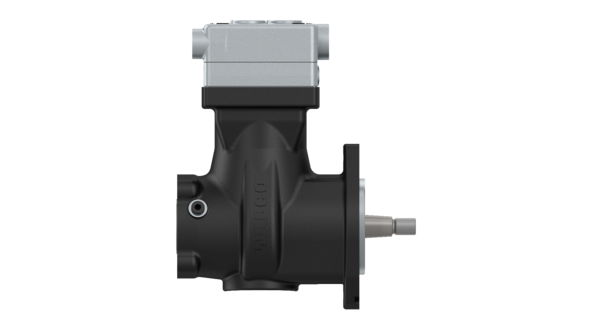

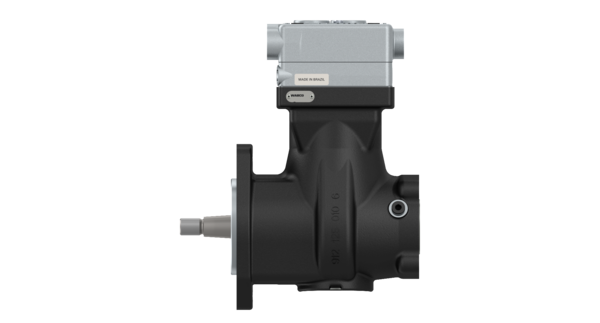

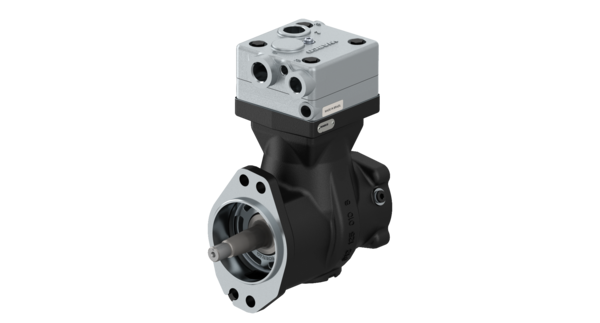

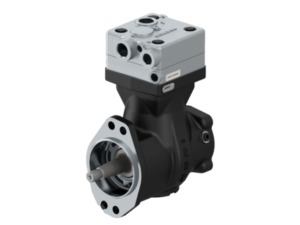

Single Cylinder Compressor
Part Number: 9121250010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 11.1369 |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.0 bar |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 42 mm |
| Port thread 0 | 3/4″ – 14 NPTF |
| Port thread 2 | 3/4″ – 14 NPTF |
| Port thread 8.1 | M10 x 1 |
| Port thread 9.1 | 1/2″ – 14 NPTF |
| Port thread 9.2 | 1/2″ – 14 NPTF |
| Product category | Device |
| Swept volume (cm³) | 238 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 7895851035904 |
| Size (mm x mm x mm) | 145 x 306 x 251 |
| UPC | 193133447399 |
| Weight (kg) | 14 |
| Weight (lb) | 30.8647 |
OEM Cross References
| Brand | Reference No |
|---|---|
| JOHN DEERE | RE250671 |
| KENWORTH | S9121250010 |
| MERITOR | S9121250010 |
| PETERBILT | S9121250010 |
