Description

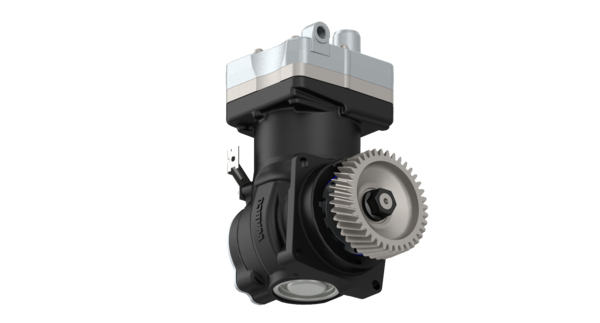

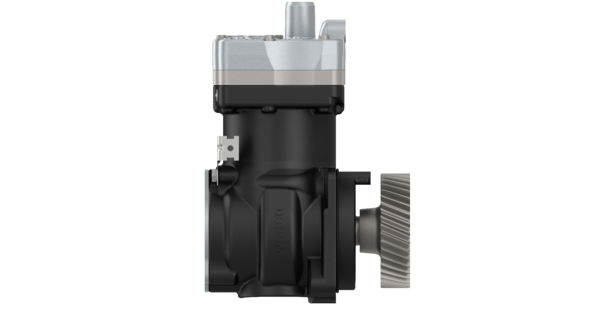

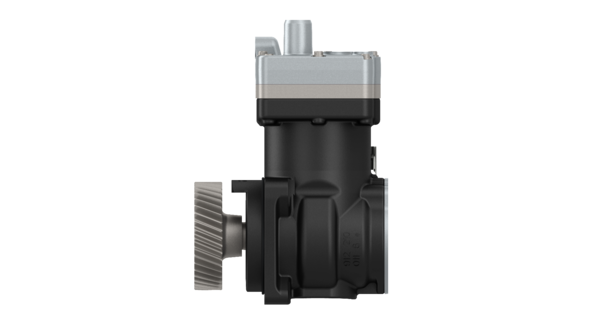

Single-Cylinder compressor, 393 ccm, flange mounted
Part Number: 9122100020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.4395 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 LH |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 100.0 mm |
| Piston stroke | 26 mm |
| Port thread 0 | Ø 30 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | Ø 6 mm |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 393 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 7895851071742 |
| Size (mm x mm x mm) | 210 x 145 x 310 |
| UPC | 193133344278 |
| Weight (kg) | 15 |
| Weight (lb) | 33.0693 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | A9061305515 |
| MERCEDES-BENZ | 9061305515 |
| MERCEDES-BENZ | A9061306615 |
