Description

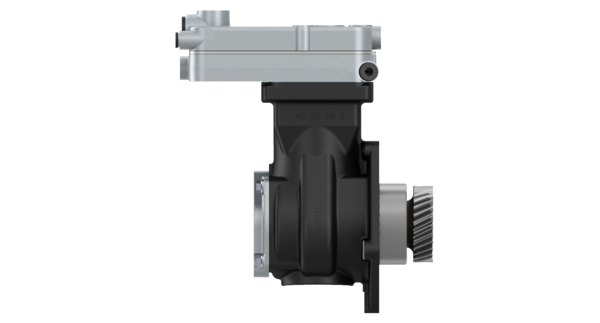

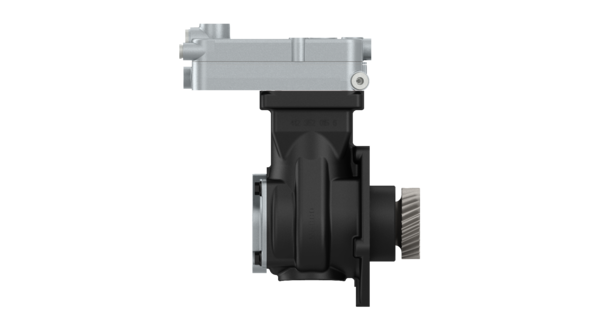

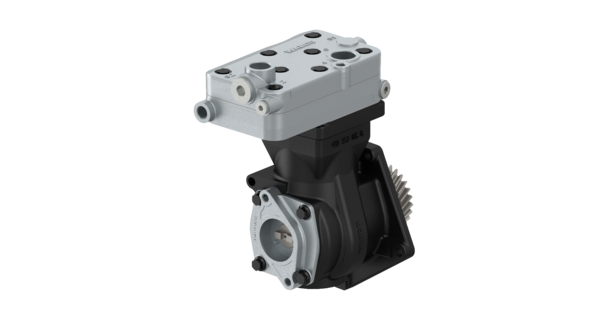

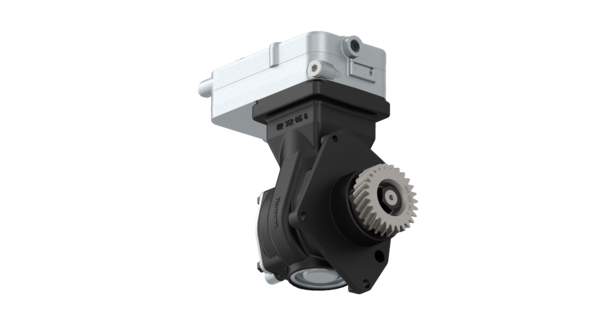

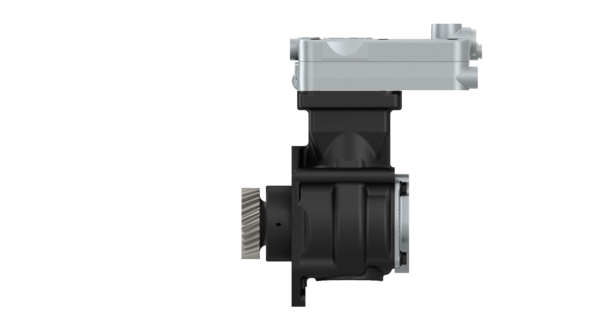

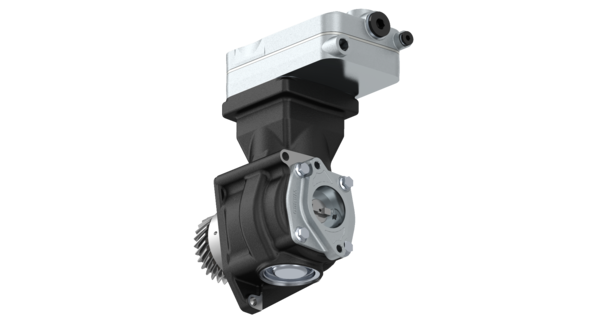

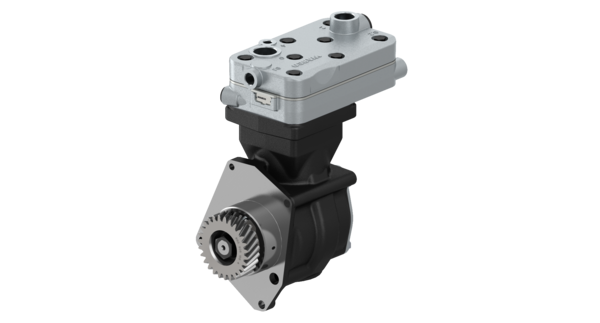

Single-Cylinder compressor, 352 cc, flange mounted
Part Number: 412352026R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Calculated Volume (dm³) | 24 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Important information | When replacing this compressor a new flange gasket is required. Flange gasket 9121101404 to be bought separately |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 62 mm |
| Port thread 0 | M30 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Port thread 8.1 | Ø 4 mm |
| Port thread 8.2 | Ø 15.5 mm |
| Port thread 9 | M12 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 352 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 04057875321125 |
| Size (mm x mm x mm) | 375 x 320 x 200 |
| UPC | 193133234968 |
| Weight (kg) | 14.93 |
| Weight (lb) | 32.91 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | A4571306715 |
| EVOBUS | A4571304415 |
| FREIGHTLINER | TDAS4123520260 |
| KENWORTH | S4123520260 |
| LIEBHERR | 10127007 |
| MACK | 8235-S4123520260 |
| MACK | 6300-4123520260 |
| MERCEDES-BENZ | 4571304415 |
| MERCEDES-BENZ | A4571304415 |
| MERCEDES-BENZ | 4571302415 |
| MERCEDES-BENZ | A4571302415 |
| MERITOR | S4123520260 |
| PETERBILT | S4123520260 |
| VOLVO | TDAS4123520260 |
| VOLVO | WAB4123520260 |
