Description

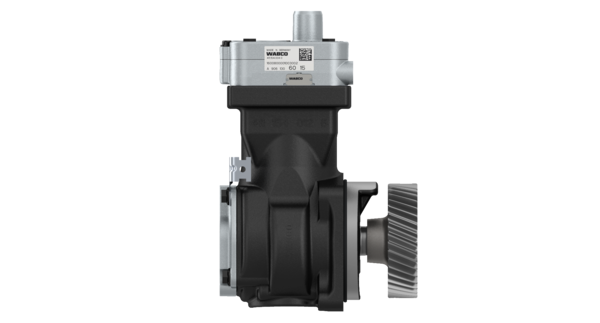

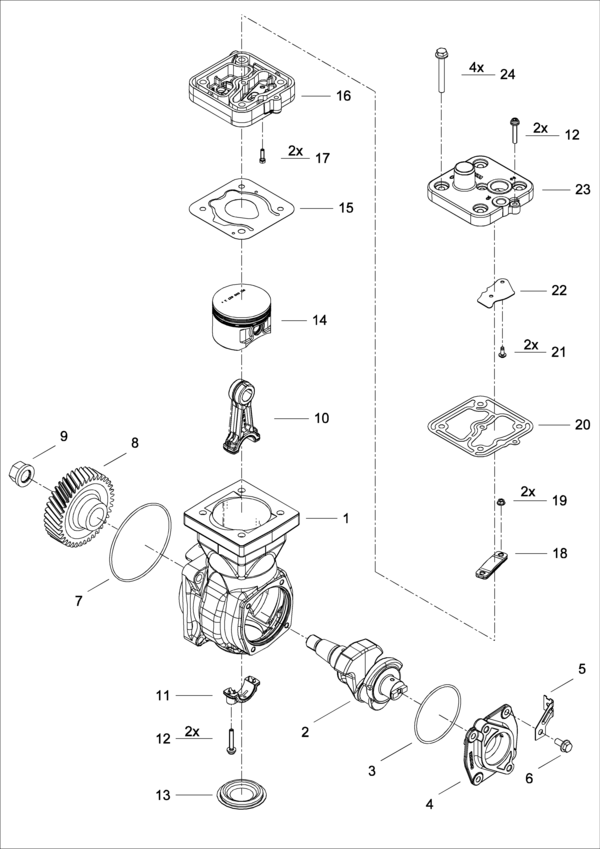

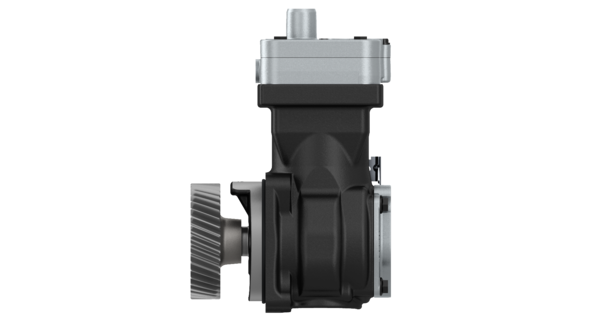

Single-Cylinder compressor, 352 cc, flange mounted
Part Number: 4111540040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 14.755 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 LH |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 62 mm |
| Port thread 0 | Ø 30 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | Ø 6 mm |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 352 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 7895851079748 |
| Size (mm x mm x mm) | 324 x 230 x 198 |
| UPC | 193133235132 |
| Weight (kg) | 12.984 |
| Weight (lb) | 28.6248 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | 9061306015 |
| MERCEDES-BENZ | A9061304915 |
| MERCEDES-BENZ | A9061306115 |
| PACCAR | 1528236 |
