Description

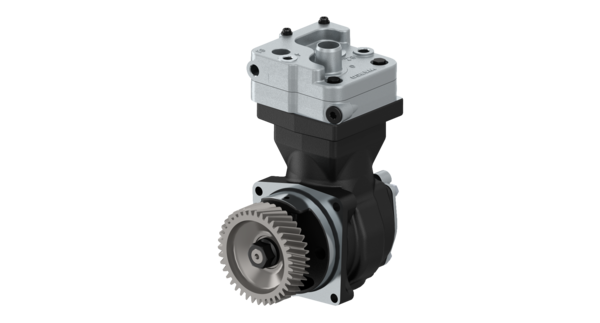

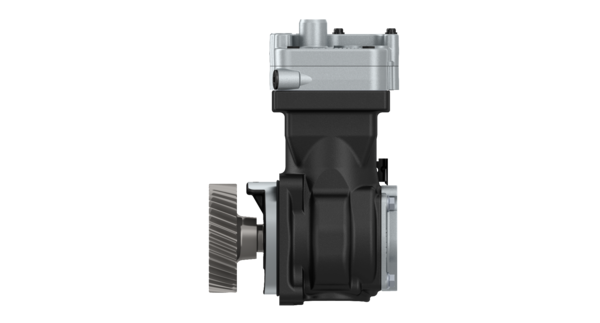

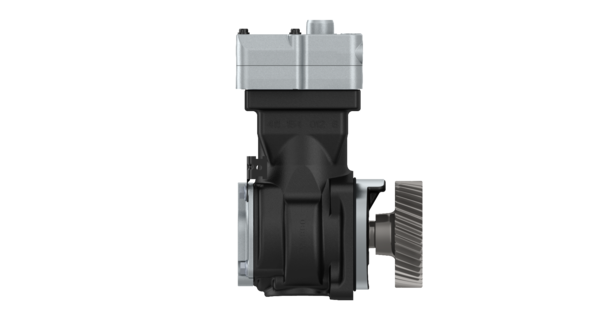

Single-Cylinder compressor, 352 cc, flange mounted
Part Number: 412352025R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Calculated Volume (dm³) | 24.32 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 62 mm |
| Port thread 0 | Ø 25 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Port thread 8.1 | Ø 6 mm |
| Port thread 9.1 | M14 x 1.5 |
| Port thread 9.2 | M14 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 352 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 04057875343684 |
| Size (mm x mm x mm) | 320 x 200 x 380 |
| UPC | 193133400479 |
| Weight (kg) | 14.3 |
| Weight (lb) | 31.53 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | 9061306215 |
| EVOBUS | A9061303015 |
| FREIGHTLINER | TDAS4123520250 |
| KENWORTH | S412-352-025-0 |
| MACK | S4123520250 |
| MACK | 6300-4123520250 |
| MERCEDES-BENZ | A9061304315 |
| MERCEDES-BENZ | 9061304315 |
| MERCEDES-BENZ | 9061301415 |
| MERCEDES-BENZ | 9061303015 |
| MERCEDES-BENZ | A9061303015 |
| MERCEDES-BENZ | A9061306215 |
| MERITOR | S4123520250 |
| PACCAR | 9500693 |
| PETERBILT | S412-352-025-0 |
| VOLVO | TDAS4123520250 |
| VOLVO | WAB4123520250 |
