Description

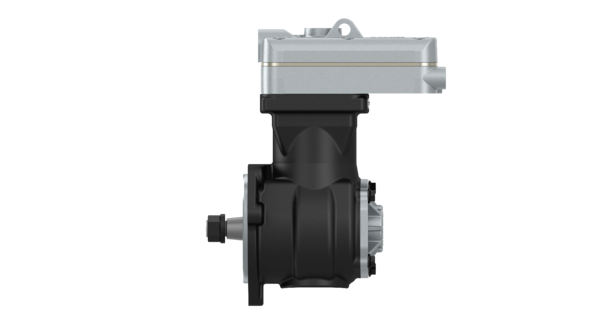

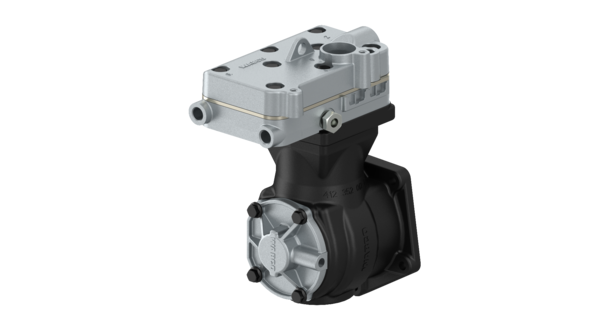

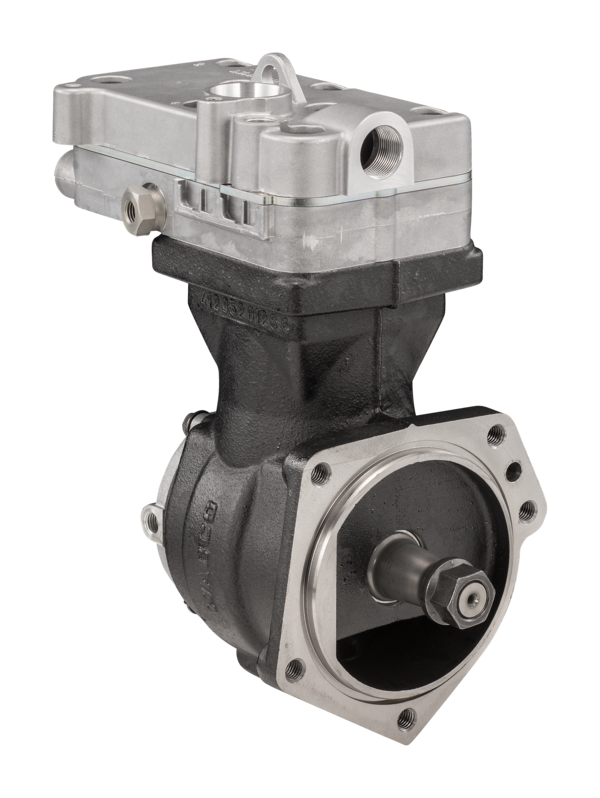

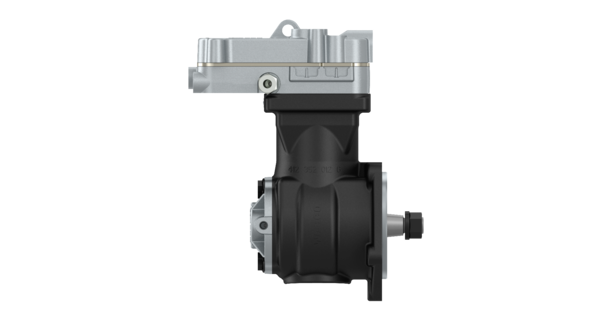

Single-Cylinder compressor, 352 cc, flange mounted
Part Number: 4123520300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 15.7826 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 12.5 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85 mm |
| Piston stroke | 62 mm |
| Port thread 0 | Ø 34.9 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Port thread 8.1 | M12 x 1.5 |
| Port thread 9 | M16 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 352 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875156178 |
| Size (mm x mm x mm) | 278 x 332 x 171 |
| UPC | 193133436072 |
| Weight (kg) | 13.649 |
| Weight (lb) | 30.0909 |
OEM Cross References
| Brand | Reference No |
|---|---|
| VOLVO | 21353460 |
| VOLVO | 20382348 |
