Description

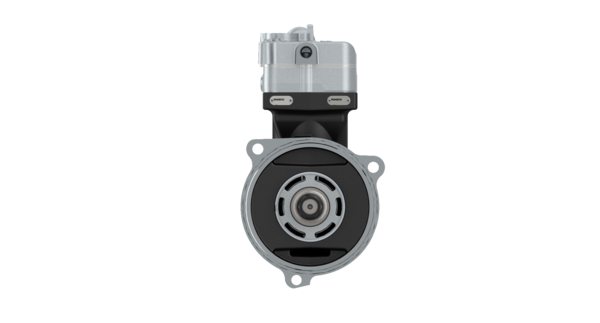

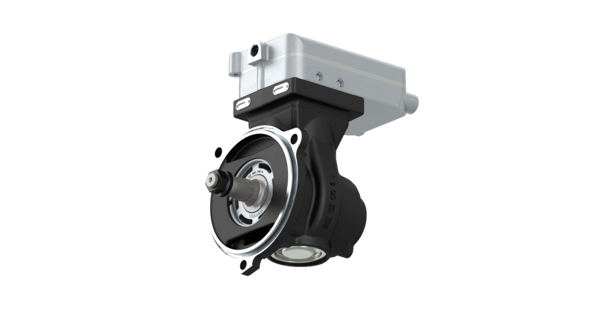

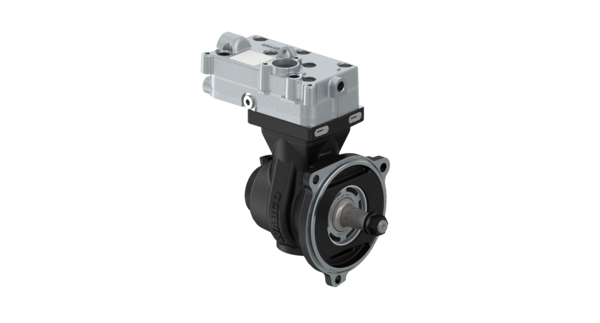

Single-Cylinder compressor, 318 ccm, flange mounted
Part Number: 9121510010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 18.09 |
| Cooling | Water |
| Crankshaft thread | M20 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 14.0 bar |
| Mounting | Flange mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 85.0 mm |
| Piston stroke | 56 mm |
| Port thread 0 | Ø 34.9 mm |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M12 x 1.5 |
| Port thread 9.1 | M16 x 1.5 |
| Port thread 9.2 | M16 x 1.5 |
| Product category | Device |
| Swept volume (cm³) | 318 cm3 |
| Technical specification | OE specification |
| Type | Single Cylinder |
| GTIN | 04057875274193 |
| Size (mm x mm x mm) | 335 x 300 x 180 |
| UPC | 193133344124 |
| Weight (kg) | 16.212 |
| Weight (lb) | 35.7413 |
OEM Cross References
| Brand | Reference No |
|---|---|
| UD TRUCKS | 22169886 |
| UD TRUCKS | 145019Z01D |
