Description

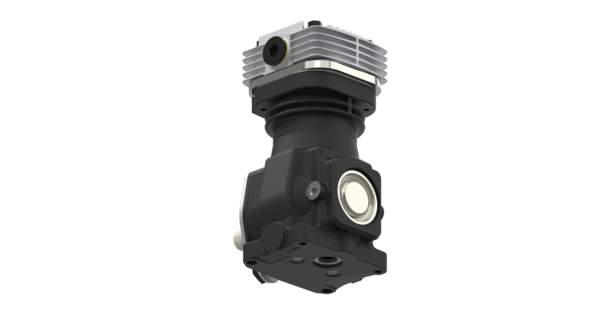

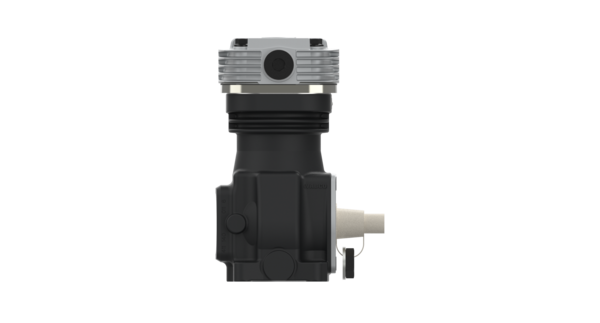

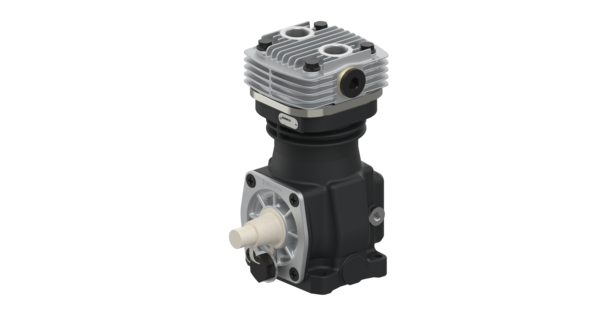

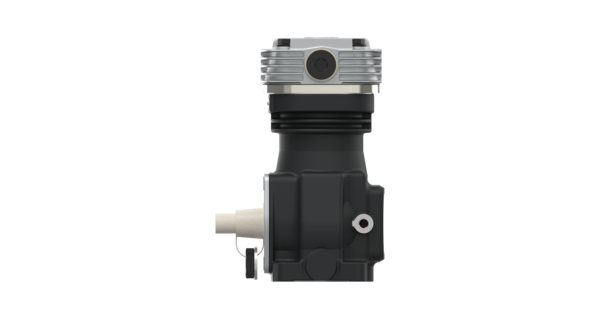

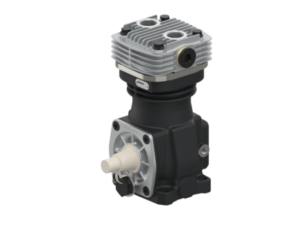

Single Cylinder Compressor
Part Number: 4111410150
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 14.35 |
| Cooling | Air |
| Crankshaft thread | M18 x 1.5 |
| Lubrication | Lubrication supplied from engine |
| Max. operating pressure | 10.0 bar |
| Mounting | Foot mounting |
| Operating speed | 3000 (1/min) |
| Piston diameter | 75 mm |
| Piston stroke | 36 mm |
| Port thread 0 | M26 x 1.5 |
| Port thread 2 | M26 x 1.5 |
| Port thread 8.1 | M10 x 1 |
| Port thread 8.2 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Type | Single Cylinder |
| Type of operation | Normal pressure using unloader |
| GTIN | 04057885562594 |
| Size (mm x mm x mm) | 320 x 230 x 195 |
| UPC | 193133549086 |
| Weight (kg) | 9.207 |
| Weight (lb) | 20.3 |
OEM Cross References
| Brand | Reference No |
|---|---|
| NEW HOLLAND | 918193760 |
