Description

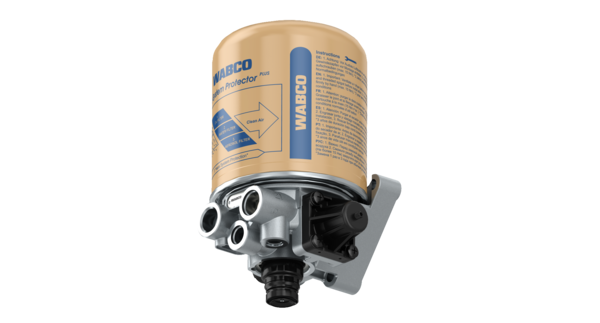

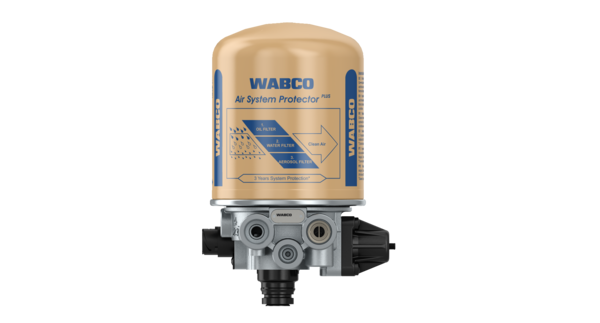

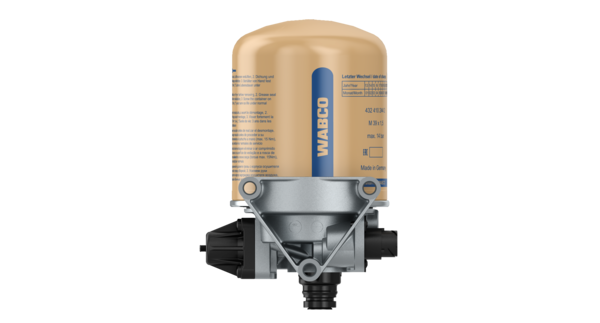

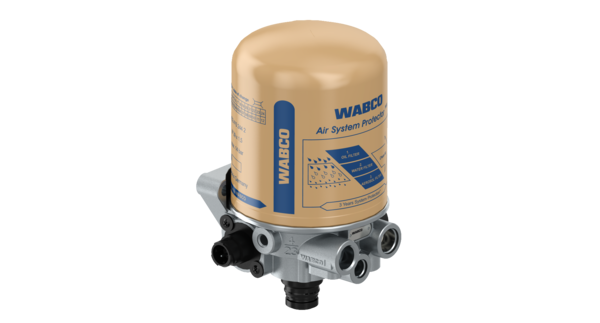

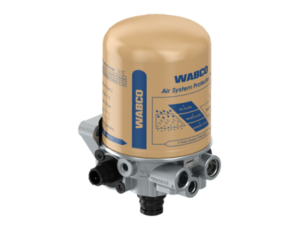

Single Chamber Air Dryer+Unloader
Part Number: 4324101660
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 11.35 |
| Cartridge type | Desiccant Cartrige |
| Cooling | Compressed air |
| Cut-out pressure | 12.5 bar |
| Exhaust | No (4324070120 retrofittable) |
| Heater | 894 260 049 2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 30 |
| Operational range | 1.3 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171416 |
| Size (mm x mm x mm) | 181 x 309 x 203 |
| UPC | 193133436911 |
| Weight (kg) | 3.6 |
| Weight (lb) | 7.937 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MACK | 6300-4324101660 |
| VOLVO | WAB4324101660 |
