Description

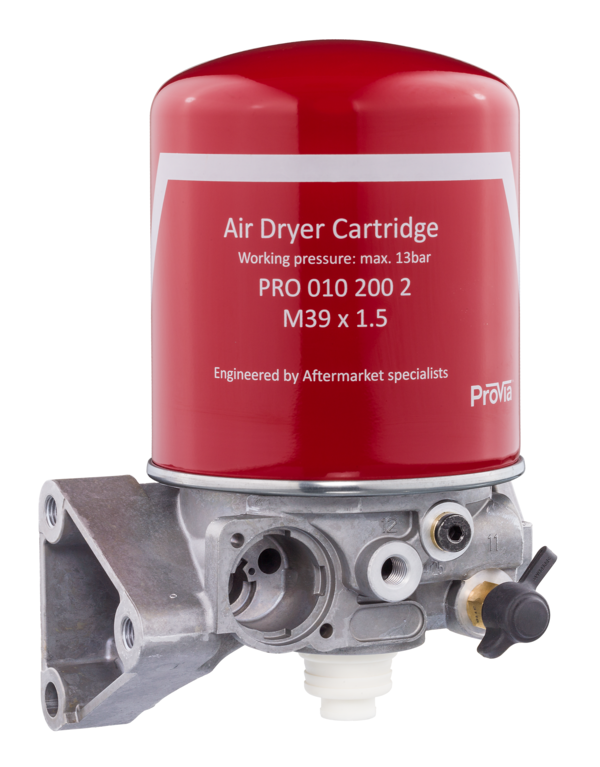

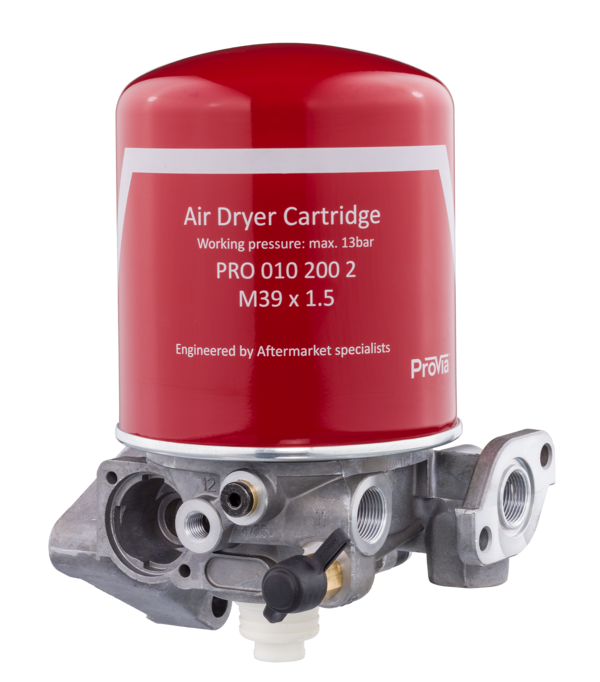

Single-Chamber Air Dryer with Unloader
Part Number: PRO4000010
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 12.05 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 12±0.3 bar |
| Exhaust | JED-463-1 |
| Heater | PRO 400 920 2 |
| Heating connection | DIN ISO 3583 |
| Important information | Compatible with Provia heater only. |
| Max. operating pressure | 13.0 bar |
| Operational range | 1.5 ±0.5 bar |
| Port thread 11 | M22 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M22 x 1.5 |
| Port thread 3 | JED-463-1 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Ports | 11, 21, 24: M22 x 1.5; 22, 23: M16 × 1.5; 12: M12×1.5; 4, 25: M10 x 1.0 |
| ProVia warranty | 1 year |
| Product category | Device |
| Technical specification | AM specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057877002992 |
| Size (mm x mm x mm) | 280 x 210 x 205 |
| UPC | 193134004638 |
| Weight (kg) | 4.342 |
| Weight (lb) | 9.572 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | AB9324000060 |
| DAF | 1505119 |
| DAF | 1506409 |
| DAF | 1506410 |
| DAF | 1518168 |
| DAF | 1519202R |
| DAF | 1526796 |
| EVOBUS | A0004301215 |
| EVOBUS | A0004301315 |
| EVOBUS | A0004302915 |
| EVOBUS | A0004303015 |
| EVOBUS | A0004309815 |
| IVECO | 500070484 |
| MERCEDES-BENZ | A0004301215 |
| MERCEDES-BENZ | A0004301315 |
| MERCEDES-BENZ | A0004302915 |
| MERCEDES-BENZ | A0004303015 |
| MERCEDES-BENZ | A0004309815 |
| MERCEDES-BENZ | 0014319215 |
| PACCAR | 1505119 |
| PACCAR | 1518168 |
| VDL | 20266183 |
