Description

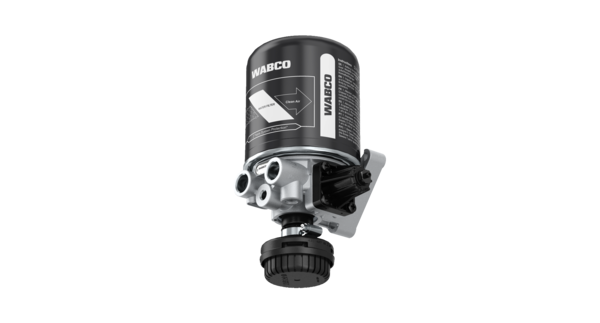

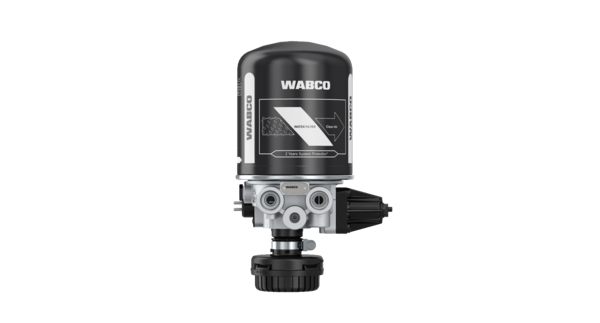

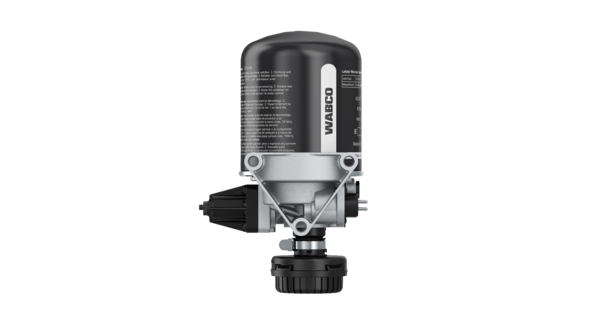

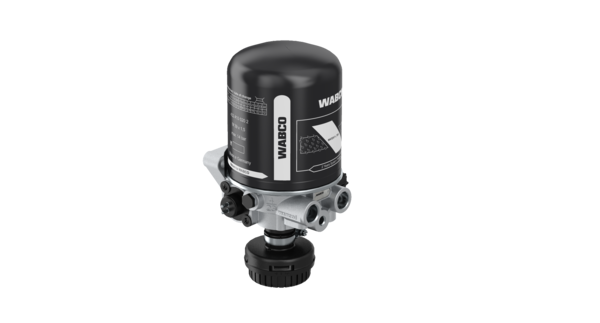

Single Chamber Air Dryer
Part Number: 4324100220
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 8.4988 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 9.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | 432 407 012 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875170815 |
| Size (mm x mm x mm) | 299 x 187 x 152 |
| UPC | 193133436867 |
| Weight (kg) | 3.708 |
| Weight (lb) | 8.1747 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518673 |
| IVECO | 42109792 |
| MACK | 6300-4324100220 |
| PACCAR | 1518673 |
| SOLARIS | 1102751140 |
| VOLVO | WAB4324100220 |
