Description

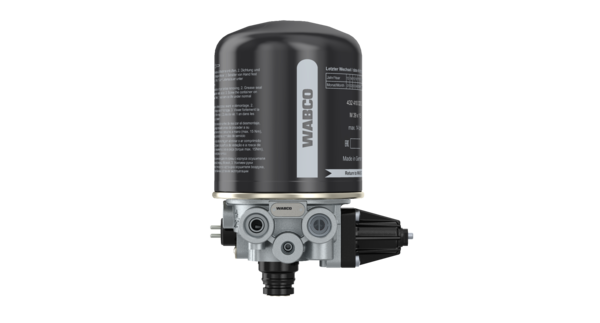

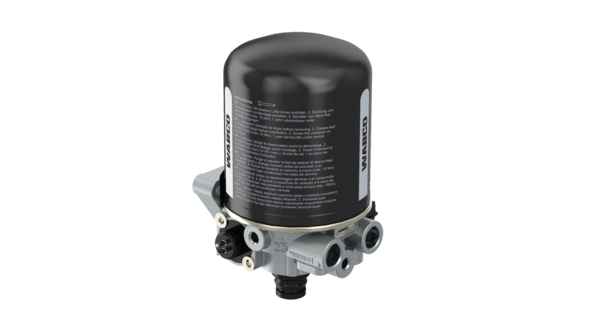

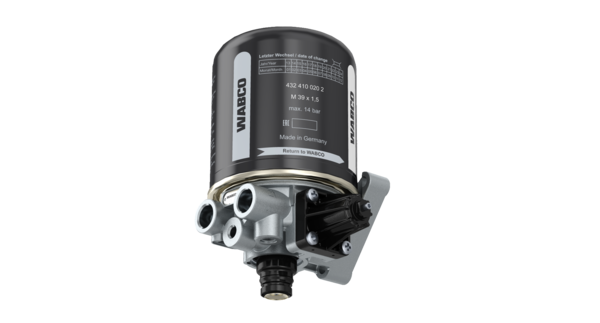

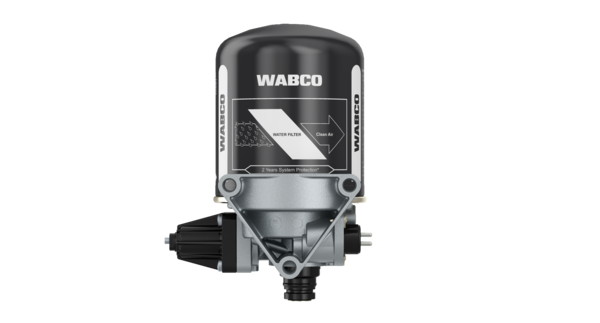

Single Chamber Air Dryer
Part Number: 4324100070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.3726 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0/432 407 070 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875170785 |
| Size (mm x mm x mm) | 188 x 258 x 152 |
| UPC | 193133436843 |
| Weight (kg) | 3.581 |
| Weight (lb) | 7.8947 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3454402010 |
| DAEWOO | P34544 02010 |
| DAF | 1517963 |
| IRISBUS | 981819 |
| IVECO | 981819 |
| KING LONG | 235200110 |
| LIEBHERR | 502657308 |
| MACK | 6300-4324100070 |
| MERCEDES-BENZ | 502657308 |
| PACCAR | 1517963 |
| SCANIA | 390854 |
| SHAANXI | 6127-3540010 |
| VDL | 20266313 |
| VDL | 266313 |
| VOLVO | WAB4324100070 |
| YUTONG | 3529-00019 |
| ZHONGTONG | 3555-10-00005 |
