Description

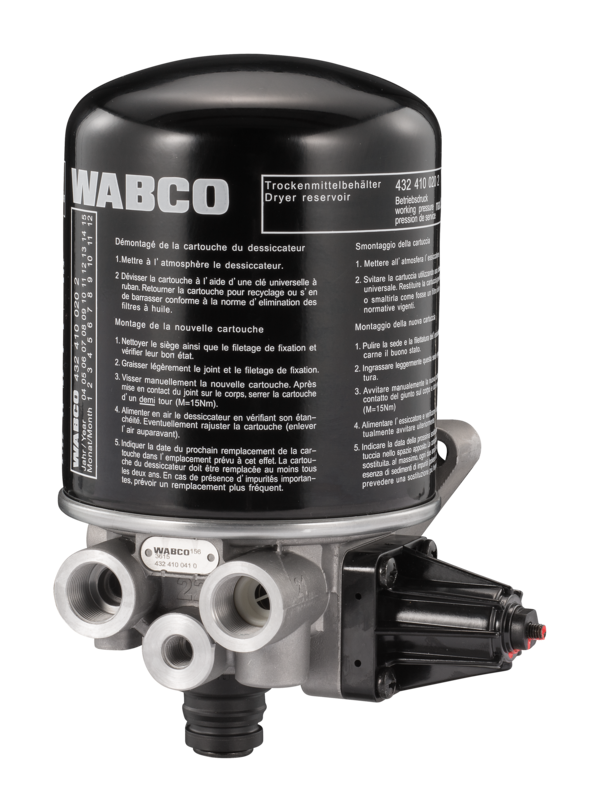

Single Chamber Air Dryer
Part Number: 4324100410
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.4696 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875170907 |
| Size (mm x mm x mm) | 188 x 154 x 258 |
| UPC | 193133254447 |
| Weight (kg) | 3.608 |
| Weight (lb) | 7.9543 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3454401440 |
| DAEWOO | P34544 01440 |
| EVOBUS | A0004318815 |
| FAW | S3511015-Y68 |
| IVECO | 106934 |
| LOHR | F00291814 |
| MAFI | 0005660020 |
| MERCEDES-BENZ | 0004318815 |
| MERCEDES-BENZ | A0004318815 |
