Description

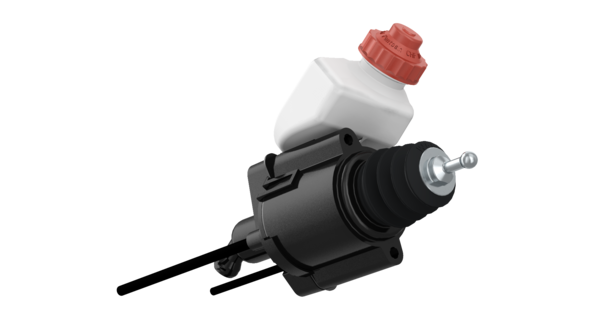

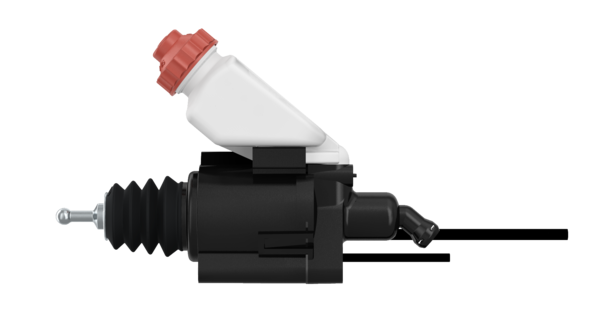

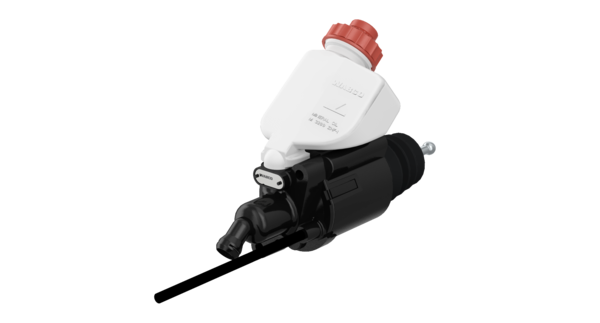

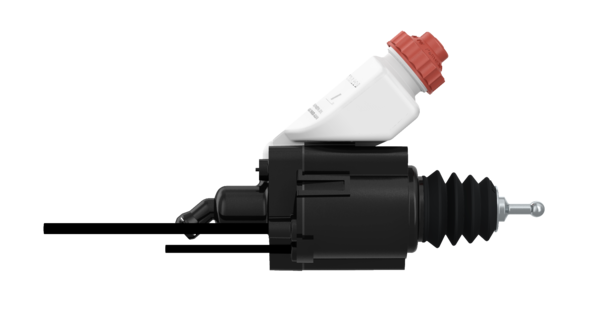

Servo Master
Part Number: 9740100080
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.9402 |
| Distance between holes | 85 mm |
| Max. operating pressure | 50.0 bar |
| Medium | Mineral oil |
| Mounting | 2x Ø 8.5 mm |
| Port thread 1 | PA 12 External 8 mm |
| Port thread 2 | PA 12 External 8 mm |
| Port thread 3 | PA 12 External 8 mm |
| Product category | Device |
| Push-rod thread | Ball R6 |
| Stroke | 30.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875304920 |
| Size (mm x mm x mm) | 276 x 172 x 83 |
| UPC | 193133379003 |
| Weight (kg) | 0.842 |
| Weight (lb) | 1.8563 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81307006022 |
| NEOPLAN | 81307006022 |
