Description

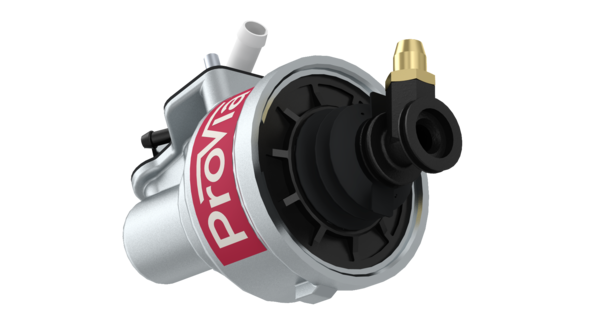

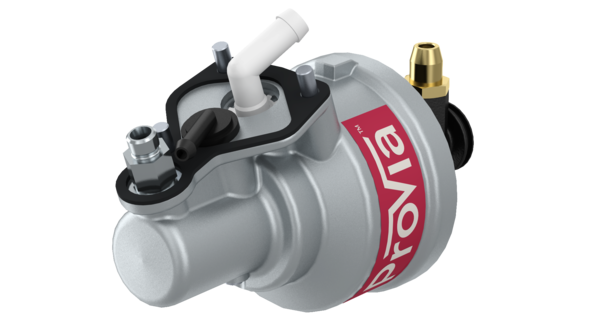

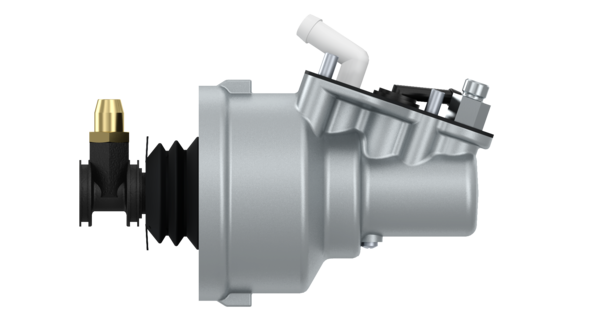

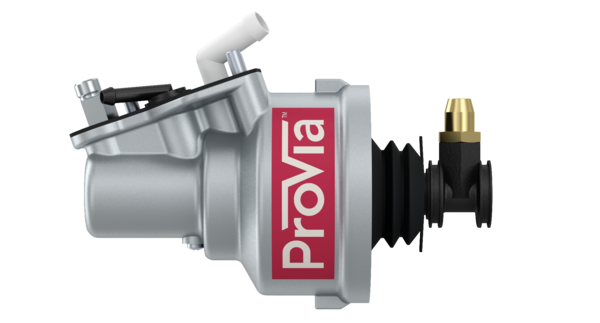

Servo Master
Part Number: PRO4113000
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 4.334 |
| Distance between holes | 62±0.3 mm, 52±0.3 mm |
| Fluid type | Brake fluid |
| Length | 225 ± 10 |
| Max. operating pressure | 10.0 bar |
| Mounting | 3x M8 x 1.25 |
| Piston stroke | min 26.9 mm |
| Port thread 1 | Ø8 |
| Port thread 12 | Ø10 ± 0.15 |
| Port thread 2 | M14 x 1.5 |
| Port thread 3 | Ø16 ± 0.2 |
| Ports | M14 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod length | Ball SR 6.5 mm |
| Technical specification | AM specification |
| Temperature range | -30˚C to +80˚C |
| Wear measurement | No |
| GTIN | 04057877023546 |
| Size (mm x mm x mm) | 225.75 x 160 x 120 |
| UPC | 193134007431 |
| Weight (kg) | 1.71 |
| Weight (lb) | 3.77 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1513717 |
| SCANIA | 1421186 |
| SCANIA | 1454590 |
| SCANIA | 1469161 |
