Description

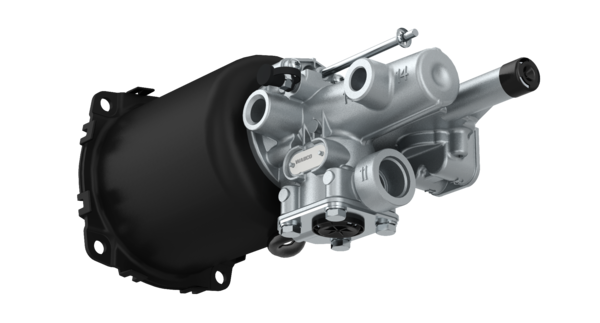

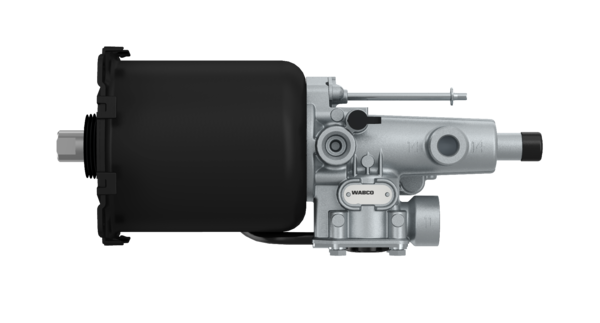

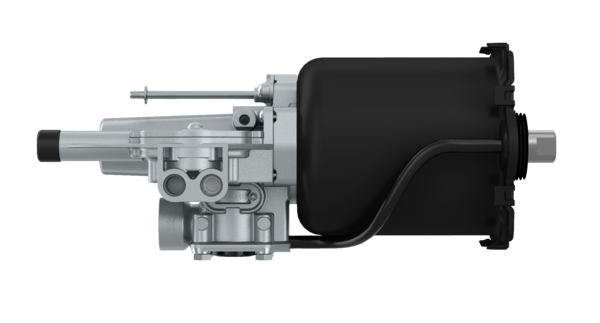

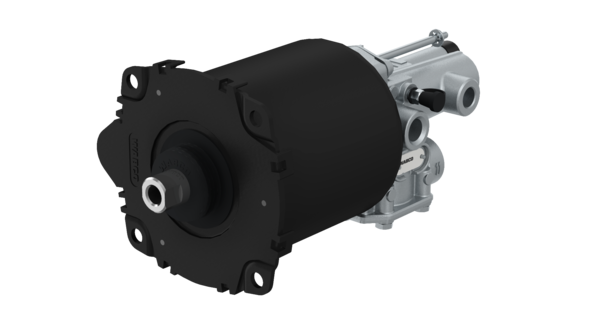

Servo Clutch
Part Number: 9700514387
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.9633 |
| Distance between holes | 130 mm |
| Exchange unit for | 9700514380 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 308 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( G ) |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | M12 x 1.75 |
| Stroke | 25.2 mm |
| Technical specification | OE specification |
| Temperature range | -30°C to +100°C |
| GTIN | 04057875300274 |
| Size (mm x mm x mm) | 404 x 124 x 139 |
| UPC | 193133416920 |
| Weight (kg) | 2.983 |
| Weight (lb) | 6.5764 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519287R |
| RENAULT | 5001864290 |
