Description

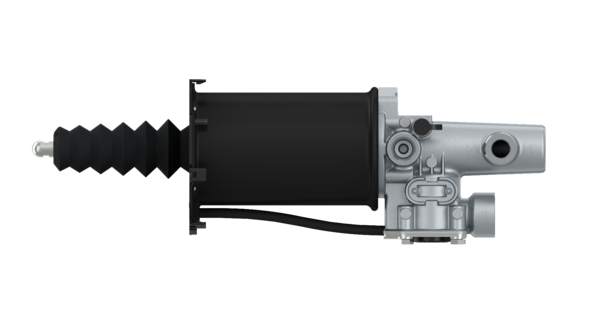

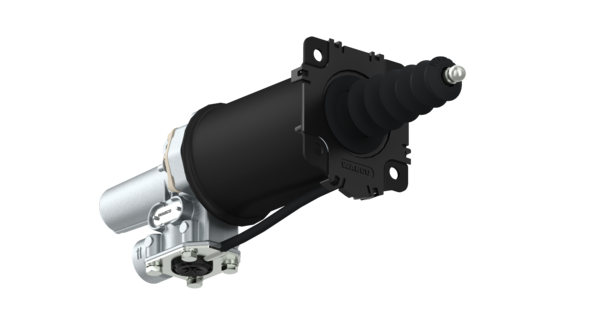

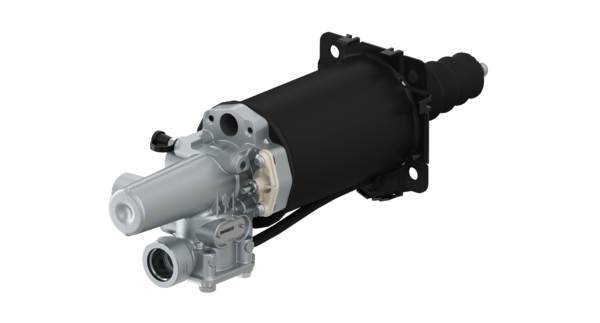

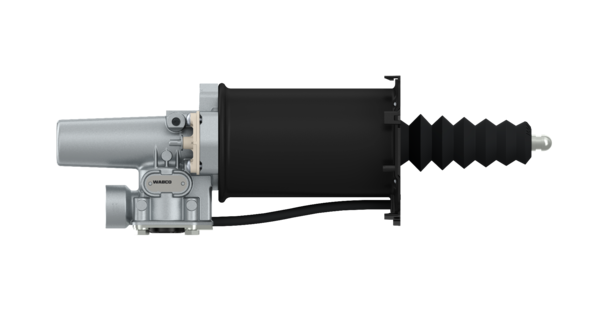

Servo Clutch
Part Number: 9700514060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.425 |
| Comments | MAN |
| Distance between holes | 98 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 365 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( G ) |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851078185 |
| Size (mm x mm x mm) | 350 x 116 x 109 |
| UPC | 193133373742 |
| Weight (kg) | 1.977 |
| Weight (lb) | 4.3585 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505141 |
| MAN | 81307256049 |
| MAN | 81307256067 |
| MAN | 81307256069 |
| NEOPLAN | 81307256069 |
| OTOKAR | 13E4022120AA |
| PACCAR | 1505141 |
