Description

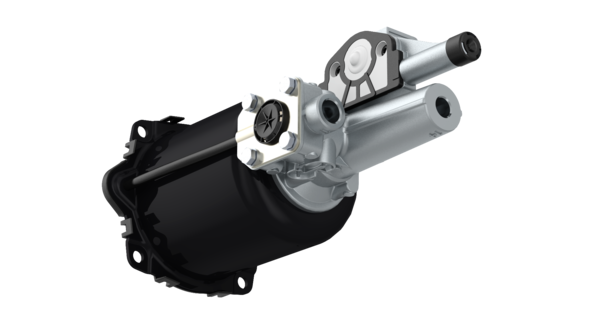

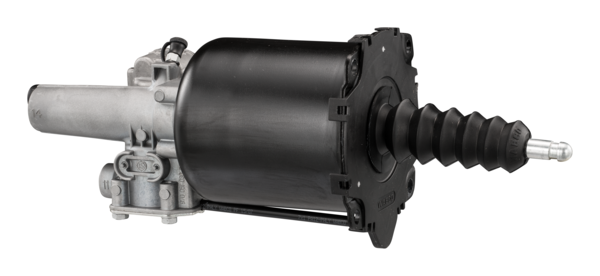

Servo Clutch
Part Number: 9700514390
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.067 |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 330 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M12 x 1.5 JED – 464 |
| Port thread 22 | M12 x 1.5 JED – 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 25.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851075955 |
| Size (mm x mm x mm) | 410 x 139 x 124 |
| UPC | 193133372974 |
| Weight (kg) | 2.808 |
| Weight (lb) | 6.1906 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FOTON | 1425316202002 |
| HINO | S31A0E0740 |
| KING LONG | 16WY104010 |
| KING LONG | 16WY1-04010 |
| SINOTRUK (CNHTC) | WG97192300251 |
| YUTONG | 160400210 |
| YUTONG | 1604-00210 |
