Description

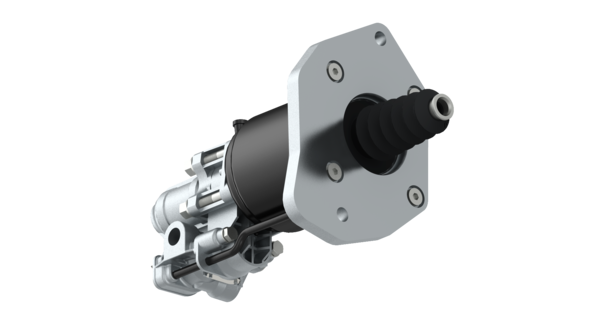

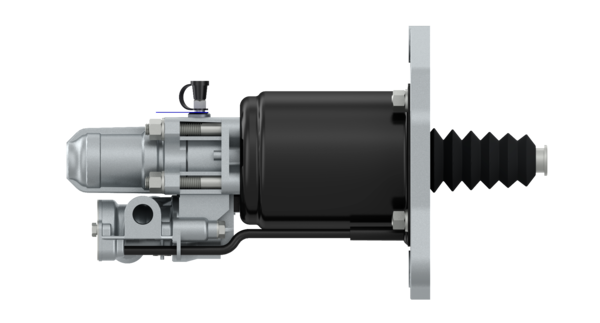

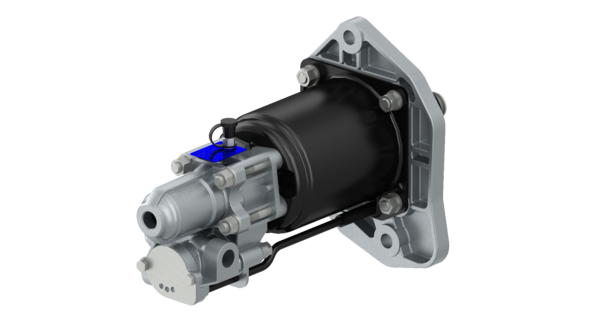

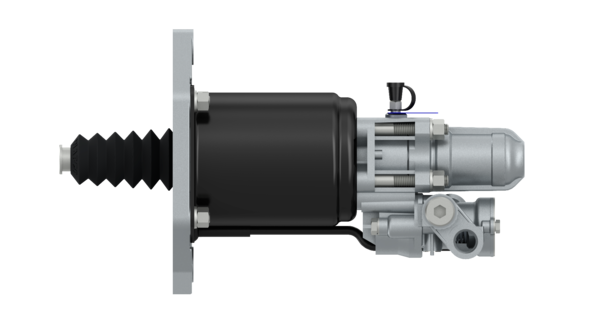

Servo Clutch
Part Number: 9700511510
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.5435 |
| Comments | MB G4 |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 314 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1-4 | M14 x 1.5 ( B ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Hole Ø12.1 mm |
| Stroke | 65.0 mm |
| Technical specification | OE specification |
| Temperature range | -20°C to +140°C |
| Test connection | M16 x 1.5 (J) |
| GTIN | 7895851038486 |
| Size (mm x mm x mm) | 314 x 182 x 132 |
| UPC | 193133373094 |
| Weight (kg) | 2.834 |
| Weight (lb) | 6.2479 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | 0002950818 |
| PACCAR | 1518250 |
