Description

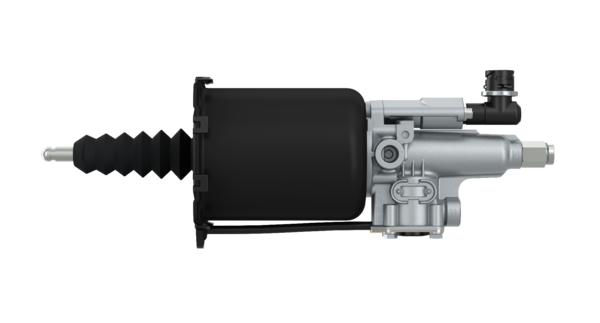

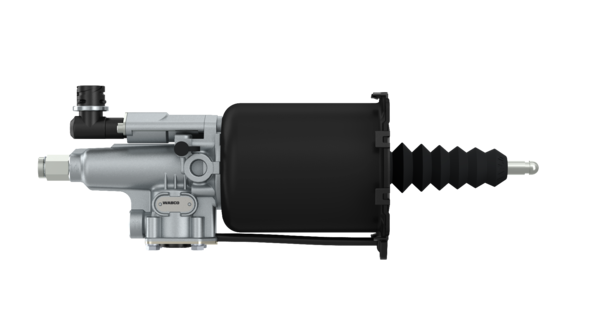

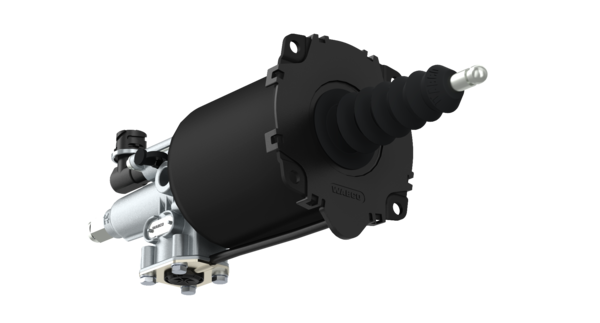

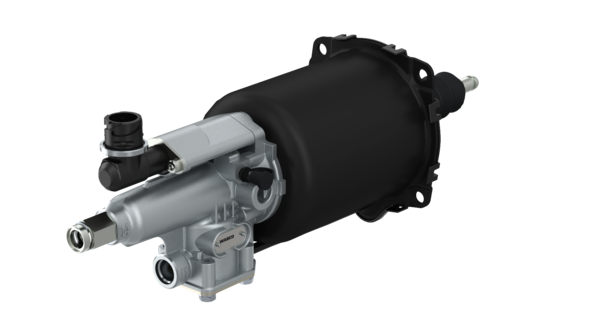

Servo Clutch
Part Number: 9700514250
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.056 |
| Comments | ZF |
| Distance between holes | 130 mm |
| Electrical connection | Bayonet DIN 72585 – A1 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 391 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 JED – 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 04057875300182 |
| Size (mm x mm x mm) | 120 x 140 x 420 |
| UPC | 193133373919 |
| Weight (kg) | 2.95 |
| Weight (lb) | 6.5036 |
