Description

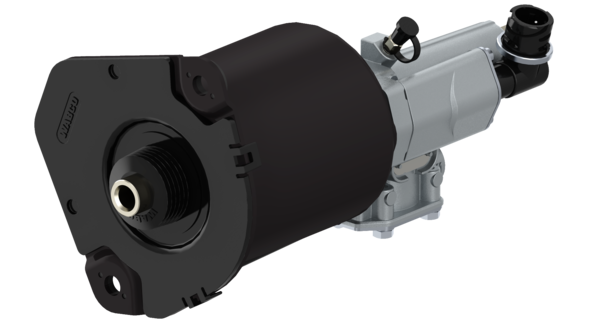

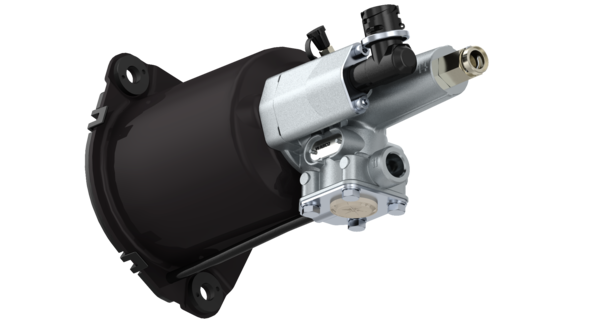

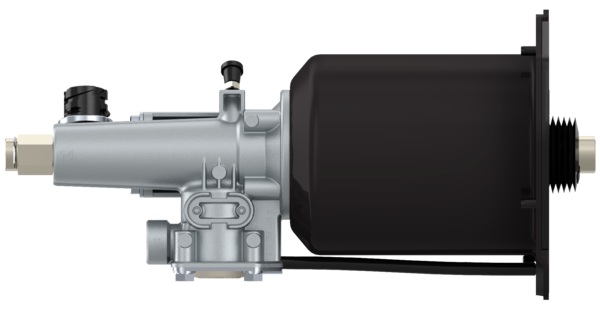

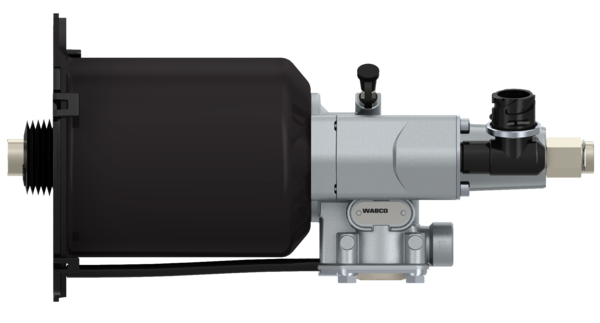

Servo Clutch
Part Number: 9700514310
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.29 |
| Comments | DC |
| Distance between holes | 110 mm |
| Electrical connection | Bayonet DIN 72585 – A1 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 290 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Hole Ø12.1 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -20°C to +80°C |
| Voltage | 12 V |
| GTIN | 7895851030114 |
| Size (mm x mm x mm) | 158 x 400 x 147 |
| UPC | 193133373841 |
| Weight (kg) | 3.135 |
| Weight (lb) | 6.9115 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506468 |
| DAF | 1505143 |
| DAF | 1506464 |
| EVOBUS | A0002540047 |
| EVOBUS | A0002952818 |
| MERCEDES-BENZ | 0002540047 |
| MERCEDES-BENZ | A0002540047 |
| MERCEDES-BENZ | A0002540047001 |
| MERCEDES-BENZ | 0002540047001 |
| MERCEDES-BENZ | A0002540047Z002 |
| MERCEDES-BENZ | 0002540047Z002 |
| MERCEDES-BENZ | 0002952818 |
| MERCEDES-BENZ | A0002952818 |
| PACCAR | 1506464 |
| PACCAR | 1505143R |
| RENAULT | 5021170437 |
| SCANIA | 1935608 |
