Description

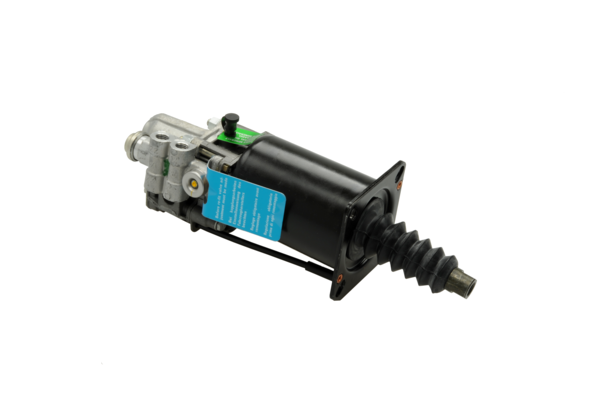

Servo Clutch
Part Number: 9700512050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.013 |
| Comments | IVECO |
| Distance between holes | 98 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 295 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Mineral oil |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( B ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | M12 x 1.25 |
| Stroke | 26.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851038318 |
| Size (mm x mm x mm) | 322 x 103 x 121 |
| UPC | 193133373568 |
| Weight (kg) | 2.424 |
| Weight (lb) | 5.344 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519281 |
| IVECO | 104084 |
