Description

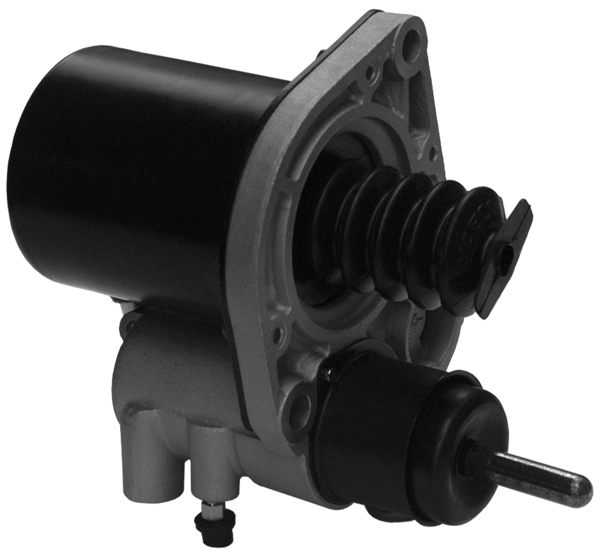

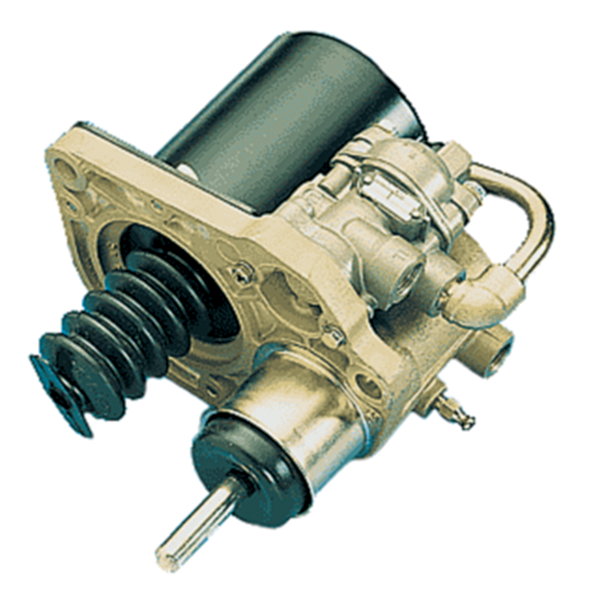

Servo Clutch
Part Number: 9700511310
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.938 |
| Comments | MB Ecosplit |
| Distance between holes | 115 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 232 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 3x Ø 11.0 mm |
| Port thread 1-4 | M14 x 1.5 ( E ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 72 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851075177 |
| Size (mm x mm x mm) | 181 x 220 x 124 |
| UPC | 193133373032 |
| Weight (kg) | 2.834 |
| Weight (lb) | 6.2479 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518247 |
| EVOBUS | 8383231000 |
| EVOBUS | 8383240000 |
| EVOBUS | A0012956707 |
| MERCEDES-BENZ | 0012953107 |
| MERCEDES-BENZ | 0012956707 |
| MERCEDES-BENZ | A0012956707 |
| MERCEDES-BENZ | A001295670780 |
| VAN HOOL | 637208670 |
