Description

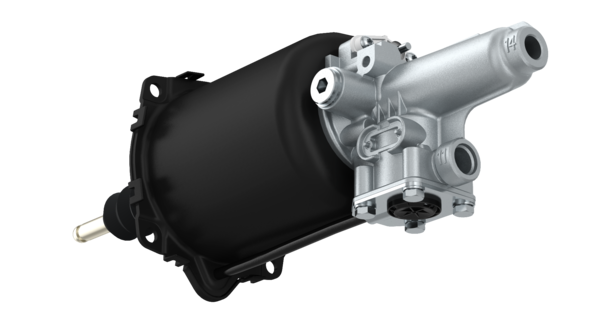

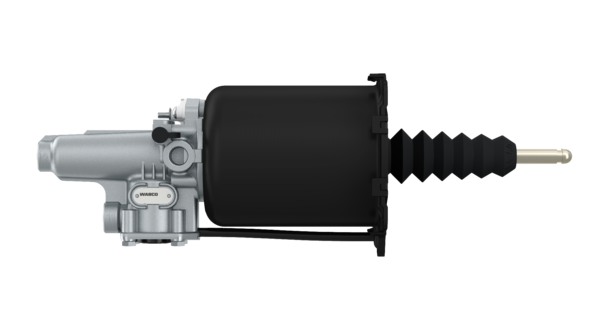

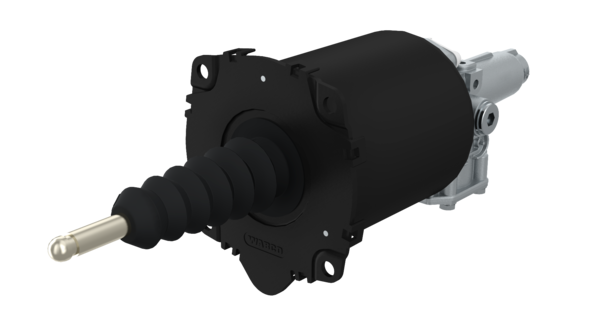

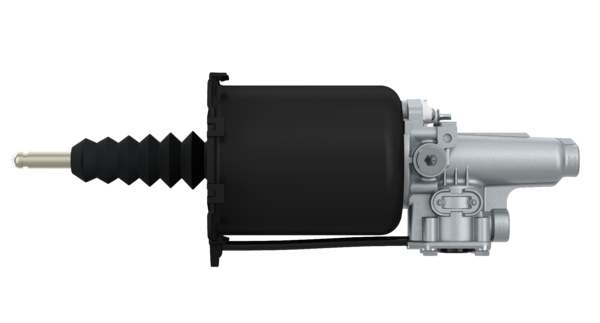

Servo Clutch
Part Number: 9700514230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.8458 |
| Comments | ZF |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 409 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( B ) |
| Port thread 11 | M16 x 1.5 JED – 464 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851035447 |
| Size (mm x mm x mm) | 412 x 134 x 124 |
| UPC | 193133372967 |
| Weight (kg) | 2.658 |
| Weight (lb) | 5.8599 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAEWOO | 3329101151 |
| DAEWOO | 3329101150 |
| DAEWOO | P33291 07070 |
| DAF | 1506466 |
| FAW | 1602305A70A |
| FORD | 7C467K626AA |
| HINO | S31A0E0780 |
| HYUNDAI | 4170077000K |
| HYUNDAI | 41700 7000K |
| KING LONG | 216500010 |
| RENAULT | 501006570 |
| RENAULT | 0501006570 |
| SCANIA | 1935601 |
| VAN HOOL | 10730817 |
| YUTONG | 160400241 |
