Description

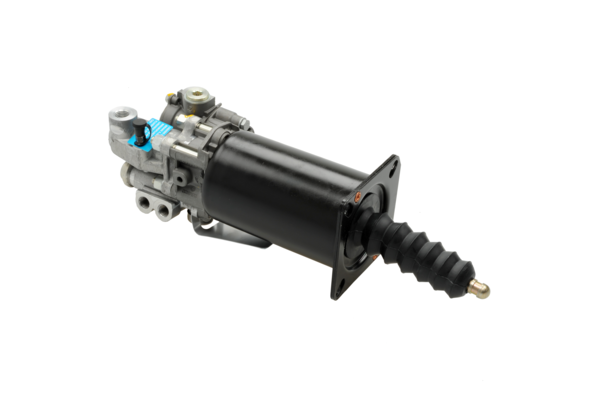

Servo Clutch
Part Number: 9700512200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.8242 |
| Comments | EvoBus |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 352 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 26.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851038592 |
| Size (mm x mm x mm) | 357 x 103 x 104 |
| UPC | 193133373186 |
| Weight (kg) | 2.517 |
| Weight (lb) | 5.549 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506463 |
| DAF | 0097539 |
| DAF | 097539 |
| DAF | 97539 |
| EVOBUS | 8383332000B |
| EVOBUS | 8285379000 |
| EVOBUS | 83833320000 |
| LEYLAND DAF | 97539 |
| NEOPLAN | 040320210 |
| NEOPLAN | 11009899 |
| VDL | 41506463 |
