Description

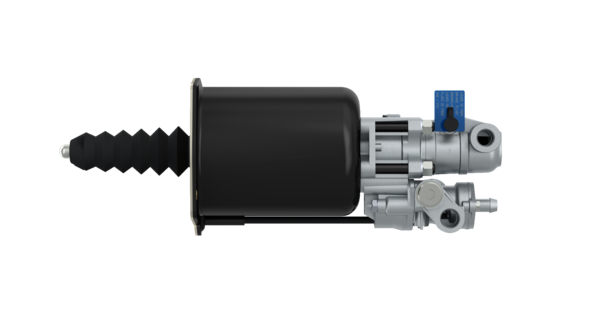

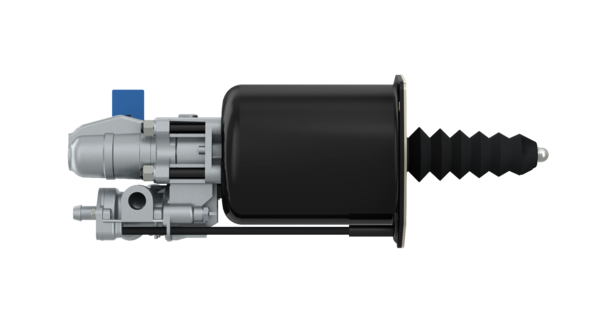

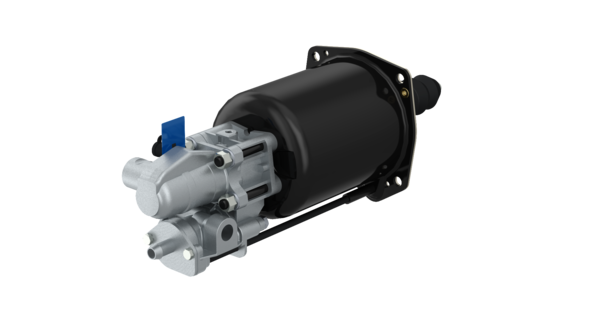

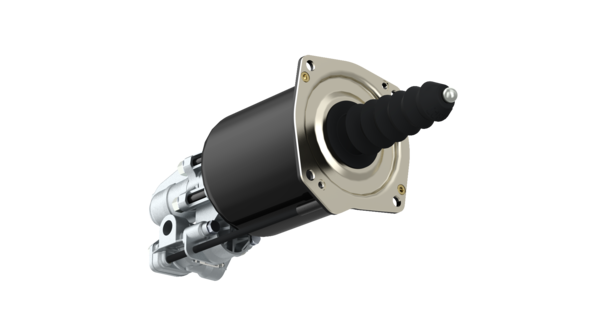

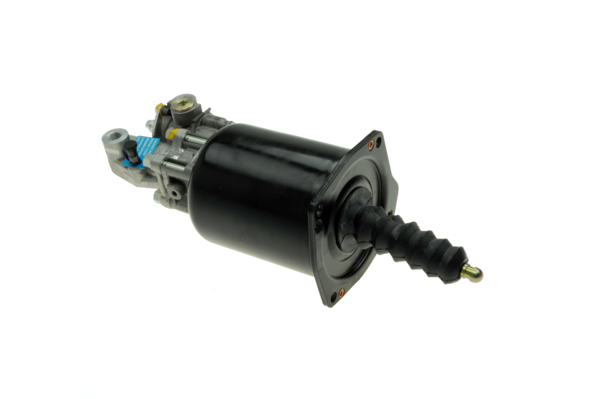

Servo Clutch
Part Number: 9700511540
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.2329 |
| Comments | ZF |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 368 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851038493 |
| Size (mm x mm x mm) | 349 x 126 x 119 |
| UPC | 193133373100 |
| Weight (kg) | 3.343 |
| Weight (lb) | 7.37 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | 0002952318 |
| VDL | 30009427 |
