Description

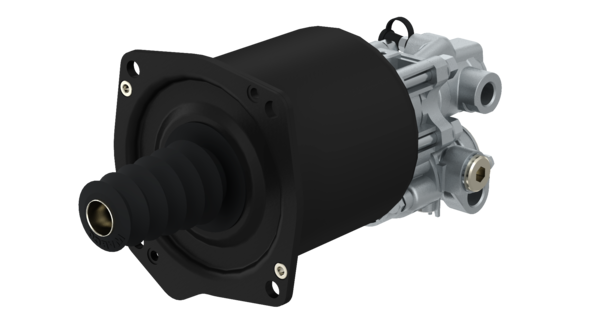

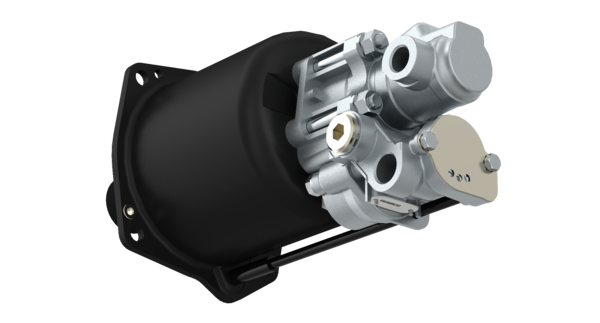

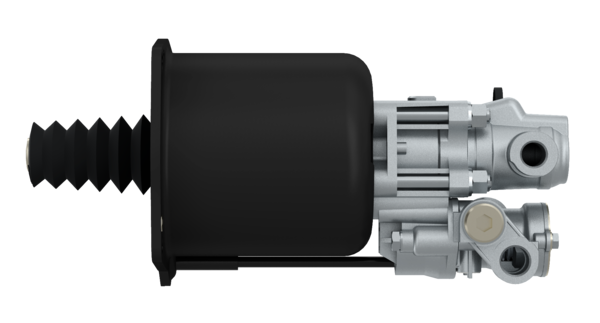

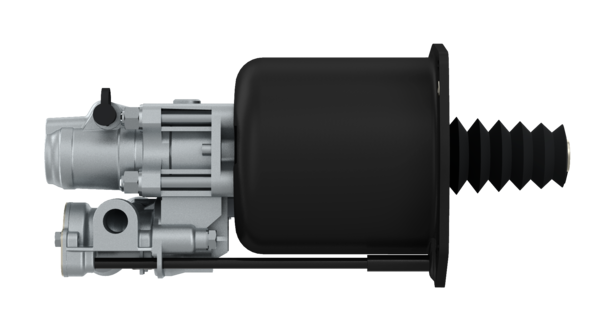

Servo Clutch
Part Number: 9700511280
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.525 |
| Comments | MB |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 286 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Hole Ø 12.1 mm |
| Stroke | 58.5 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Test connection | M16 x 1.5 (J) |
| GTIN | 7895851022836 |
| Size (mm x mm x mm) | 290 x 150 x 150 |
| UPC | 193133373124 |
| Weight (kg) | 3.205 |
| Weight (lb) | 7.066 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BUSSCAR | 6076119 |
| DAF | 1518246 |
| EVOBUS | A0012955607 |
| FORD | XC457K626AA |
| MAN | TAR721257 |
| MERCEDES-BENZ | 0012955607 |
| MERCEDES-BENZ | A0012955607 |
| VW | TAR721257 |
