Description

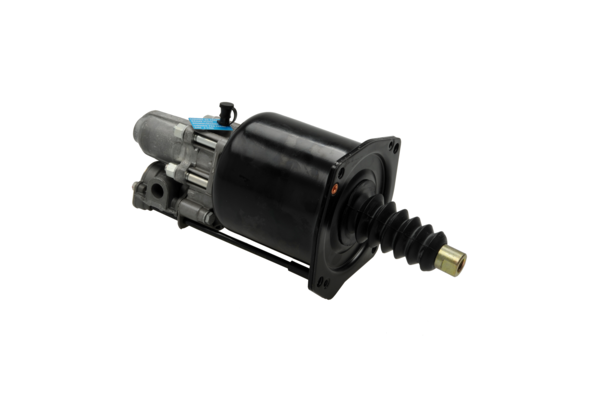

Servo Clutch
Part Number: 9700511240
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.9214 |
| Comments | RVI |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 315 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( B ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | M12 x 1.0 |
| Stroke | 56.5 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Test connection | M16 x 1.5 (J) |
| GTIN | 7895851038455 |
| Size (mm x mm x mm) | 236 x 134 x 124 |
| UPC | 193133449645 |
| Weight (kg) | 3.013 |
| Weight (lb) | 6.6425 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518244 |
| FREIGHTLINER | TDAS9700511240 |
| IRISBUS | 5000787875 |
| IVECO | 503135313 |
| IVECO | 5000787875 |
| KENWORTH | S970-051-124-0 |
| MACK | 8235-S9700511240 |
| MACK | 6300-9700511240 |
| MERITOR | S9700511240 |
| PETERBILT | S970-051-124-0 |
| RENAULT | 5000787875 |
| VOLVO | WAB9700511240 |
