Description

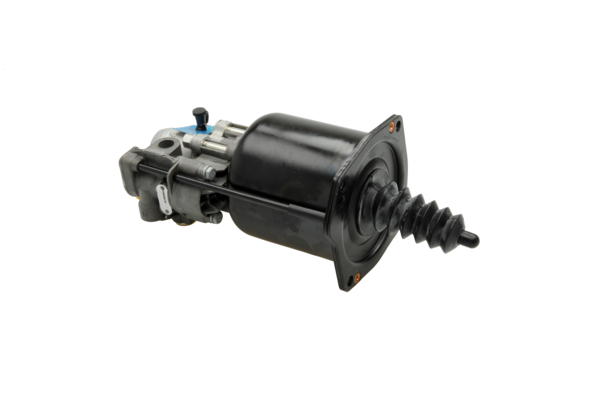

Servo Clutch
Part Number: 9700511270
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.796 |
| Comments | ZF-Iveco |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 301 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 58.5 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Test connection | M16 x 1.5 (J) |
| GTIN | 7895851038462 |
| Size (mm x mm x mm) | 229 x 121 x 137 |
| UPC | 193133373018 |
| Weight (kg) | 2.893 |
| Weight (lb) | 6.378 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519273 |
| IVECO | 04791101 |
| IVECO | 4791101 |
| NEOPLAN | 040320100 |
| NEOPLAN | 11009896 |
