Description

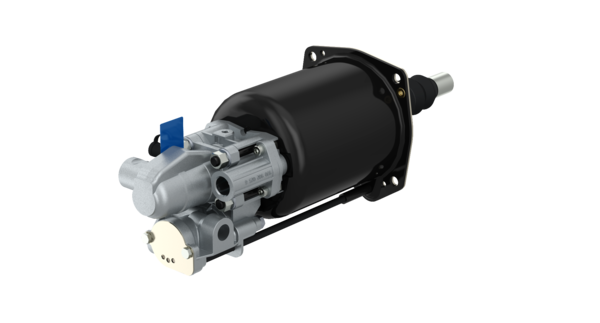

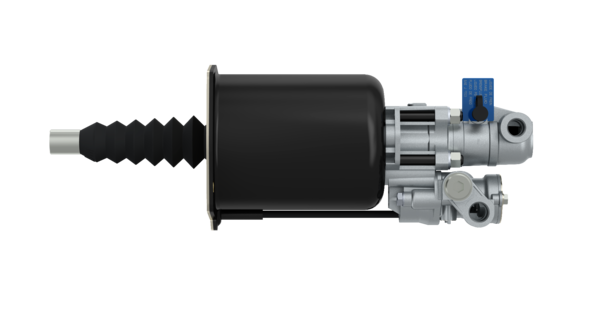

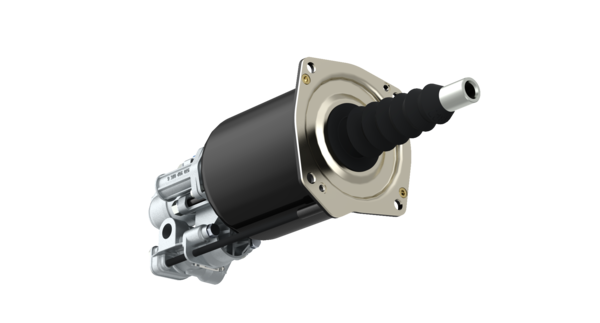

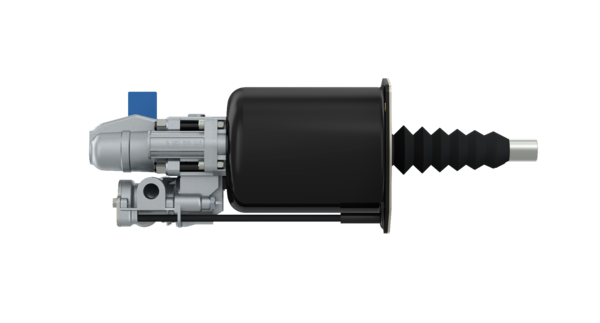

Servo Clutch
Part Number: 9700511640
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.587 |
| Comments | DC |
| Distance between holes | 130 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 396 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Hole Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851022874 |
| Size (mm x mm x mm) | 289 x 128 x 124 |
| UPC | 193133449669 |
| Weight (kg) | 3.595 |
| Weight (lb) | 7.9256 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0002951318 |
| KENWORTH | S9700511640 |
| MACK | 6300-9700511640 |
| MERCEDES-BENZ | 0002951318 |
| MERCEDES-BENZ | A0002951318 |
| MERCEDES-BENZ | 0002950718 |
| MERCEDES-BENZ | A0002950718 |
| MERITOR | S9700511640 |
| PETERBILT | S9700511640 |
| SINOTRUK (CNHTC) | AZ9123230019 |
| VOLVO | WAB9700511640 |
| VW | 2Z0721257 |
