Description

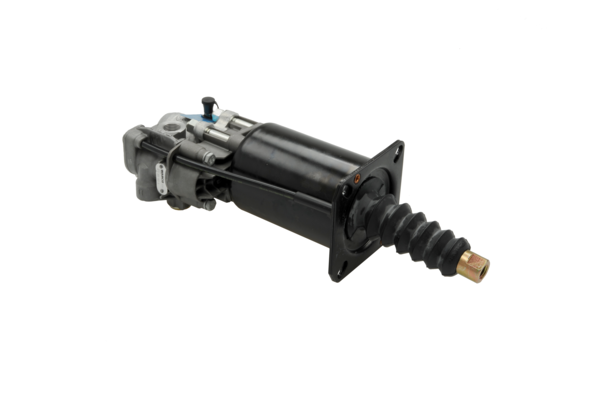

Servo Clutch
Part Number: 9700511020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.204 |
| Comments | DAF |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 317 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | M12 x 1.0 |
| Stroke | 67.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851040267 |
| Size (mm x mm x mm) | 324 x 103 x 96 |
| UPC | 193133372509 |
| Weight (kg) | 2.276 |
| Weight (lb) | 5.0177 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0658882 |
| DAF | 262077 |
| DAF | 624993 |
| DAF | 658882 |
| FAUN | 99708436147 |
| IVECO | 04776623 |
| IVECO | 42064599 |
| MERCEDES-BENZ | 6992950018 |
| MERCEDES-BENZ | A6992950018 |
| TEREX | 96910300 |
| VAN HOOL | 637206630 |
