Description

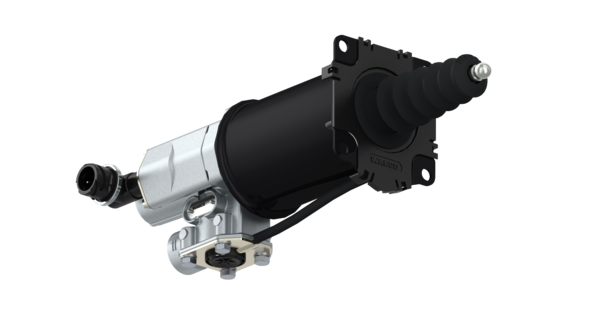

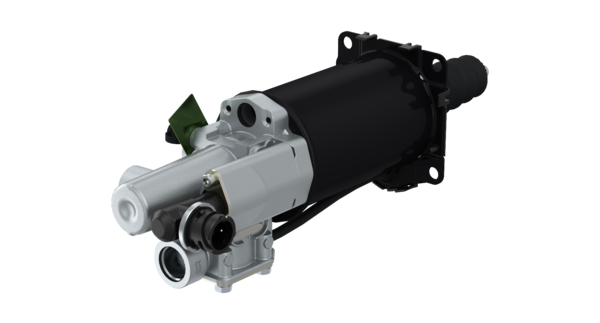

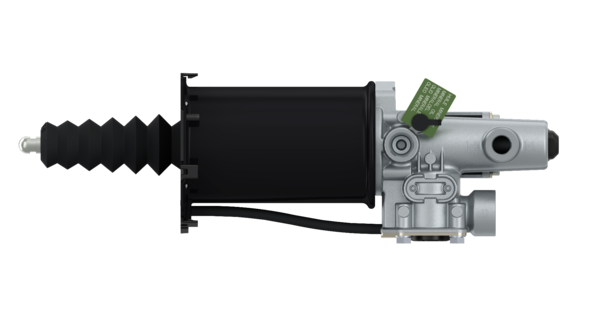

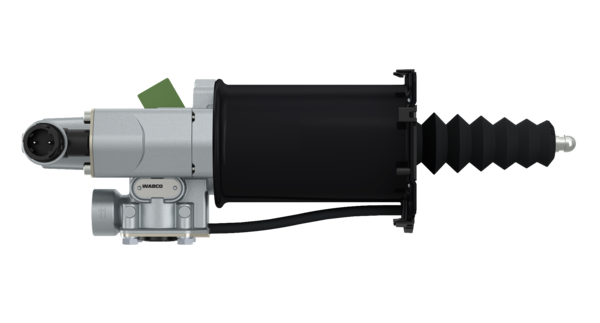

Servo Clutch
Part Number: 9700514580
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.7453 |
| Distance between holes | 110 mm |
| Electrical connection | Bayonet DIN 72585 – A1 – 2.1 – SN K2 |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 373 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Mineral oil |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 04057875300342 |
| Size (mm x mm x mm) | 375 x 111 x 114 |
| UPC | 193133374039 |
| Weight (kg) | 2.182 |
| Weight (lb) | 4.8105 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81307256114 |
| MAN | 81307256110 |
| NEOPLAN | 81307256114 |
