Description

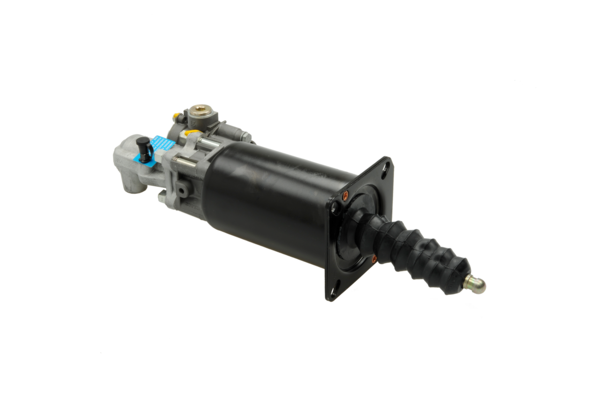

Servo Clutch
Part Number: 9700511500
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.521 |
| Comments | DAF |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 362 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( E ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851038240 |
| Size (mm x mm x mm) | 364 x 93 x 104 |
| UPC | 193133373056 |
| Weight (kg) | 2.324 |
| Weight (lb) | 5.1235 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0753259 |
| DAF | 753259 |
| MAN | 2Z0721261D*EM_LIBERA |
| VDL | 0753259 |
