Description

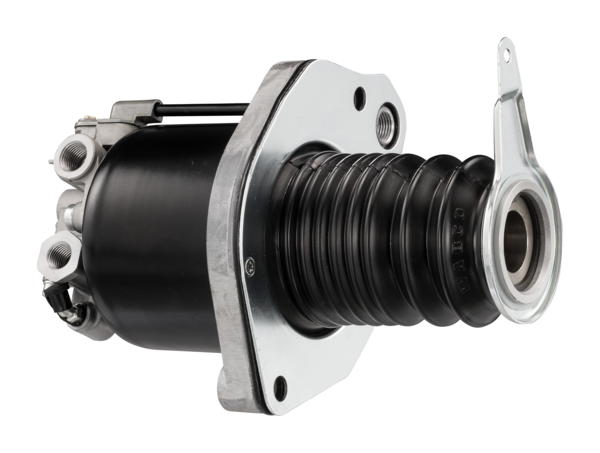

Servo Clutch
Part Number: 9700511580
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.4919 |
| Distance between holes | 146 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 188 mm |
| Max. operating pressure | 8.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Hole Ø 12.0 mm |
| Stroke | 75.0 mm |
| Technical specification | OE specification |
| Temperature range | -20°C to +140°C |
| GTIN | 04057875299950 |
| Size (mm x mm x mm) | 263 x 187 x 132 |
| UPC | 193133373308 |
| Weight (kg) | 2.849 |
| Weight (lb) | 6.281 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506456 |
| EVOBUS | A0002951518 |
| MERCEDES-BENZ | 0002951518 |
| MERCEDES-BENZ | A0002951518 |
