Description

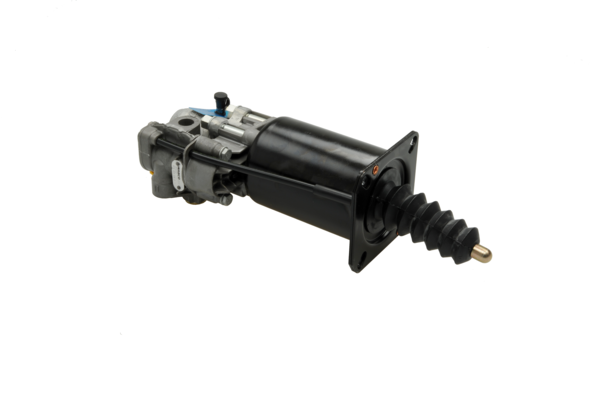

Servo Clutch
Part Number: 9700511260
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.095 |
| Comments | Iveco |
| Distance between holes | 110 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 314 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 ( K ) |
| Port thread 11 | M16 x 1.5 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 67.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851047150 |
| Size (mm x mm x mm) | 320 x 93 x 104 |
| UPC | 193133372899 |
| Weight (kg) | 2.147 |
| Weight (lb) | 4.7333 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 659807 |
| DAF | 1518245 |
| IRISBUS | 42061949 |
| IVECO | 42037229 |
| IVECO | 42037766 |
| IVECO | 42061949 |
| IVECO | 42063552 |
| IVECO | 01261885 |
| IVECO | 02477724 |
| IVECO | 00956047 |
| IVECO | 956047 |
| IVECO | 4206355 |
| NEOPLAN | 042320200 |
| NEOPLAN | 11010070 |
| RENAULT | 5000815689 |
| RENAULT | 5000589133 |
| VAN HOOL | 637208220 |
| VAN HOOL | 637208440 |
| VAN HOOL | 2477724 |
