Description

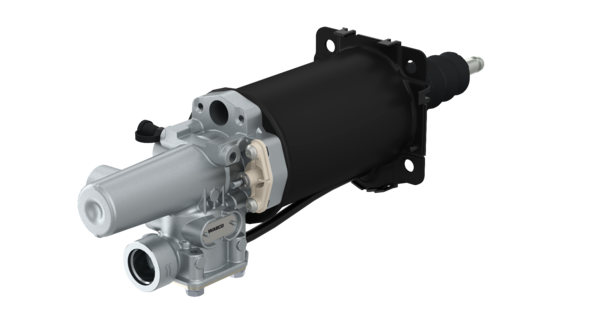

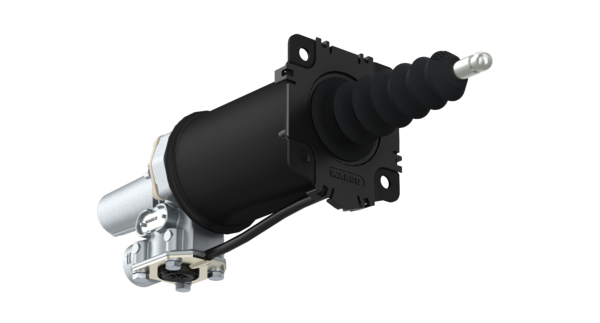

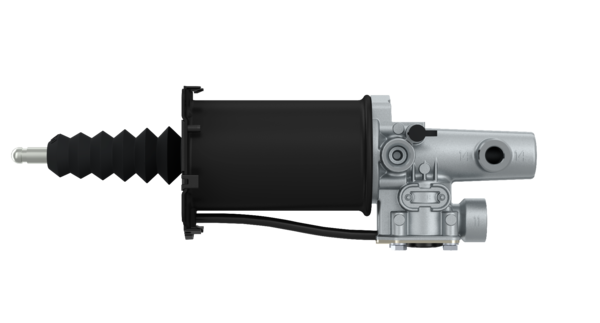

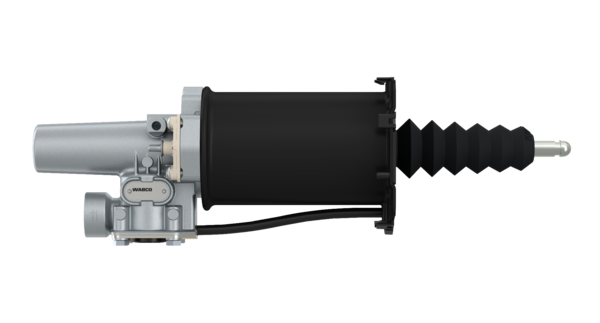

Servo Clutch
Part Number: 9700514530
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.4 |
| Distance between holes | 98 mm |
| Important information | Please follow the installation instructions of the vehicle manufacturer |
| Length | 380 mm |
| Max. operating pressure | 10.0 bar |
| Medium | Brake fluid SAE J 1703 |
| Mounting | 4x Ø 9.0 mm |
| Port thread 1-4 | M14 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 31 | Flap Exhaust |
| Port thread 32 | Ø 8.0 mm |
| Product category | Device |
| Push-rod thread | Ball Ø 12.0 mm |
| Stroke | 85.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875300380 |
| Size (mm x mm x mm) | 100 x 400 x 110 |
| UPC | 193133373773 |
| Weight (kg) | 2.012 |
| Weight (lb) | 4.4357 |
OEM Cross References
| Brand | Reference No |
|---|---|
| NISSAN | 306209X401 |
| NISSAN | 30620LA40A |
| UD TRUCKS | 306209X401 |
| UD TRUCKS | 30620LA40A |
