Description

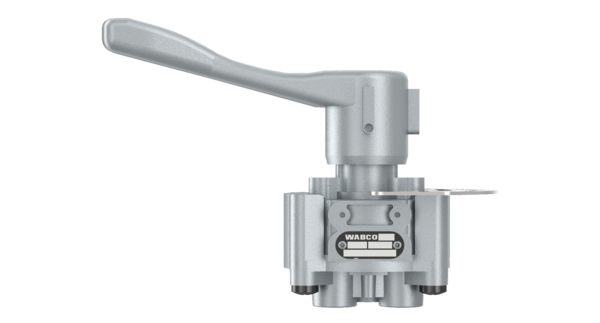

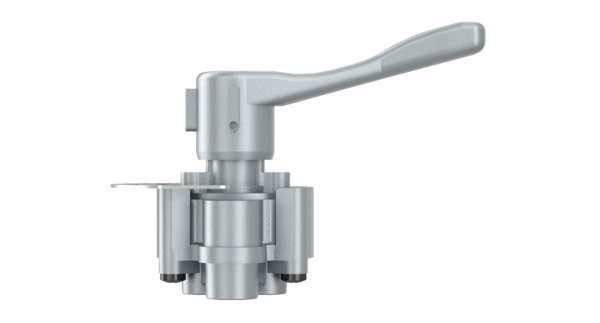

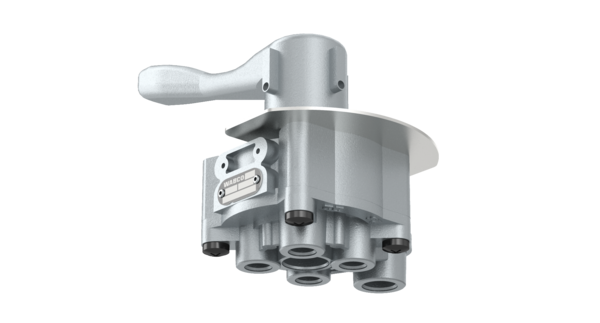

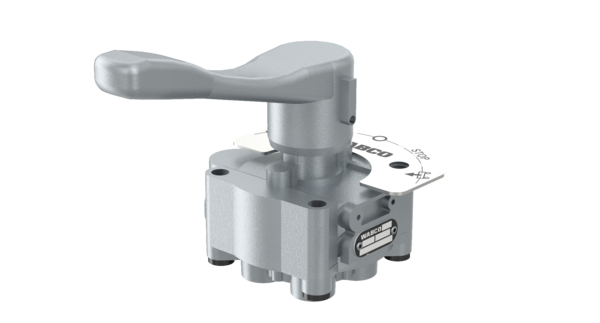

Rotary Slide Valve
Part Number: 4630320200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.085 |
| Distance between holes | 55 mm |
| Handle length | 122 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 4 x M8 |
| Port thread 1 | M16 x 1.5 |
| Port thread 21 | M12 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 23 | M12 x 1.5 |
| Port thread 24 | M12 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Without Dead man’s switch |
| GTIN | 7895851006638 |
| Size (mm x mm x mm) | 133 x 160 x 98 |
| UPC | 193133442417 |
| Weight (kg) | 1.175 |
| Weight (lb) | 2.59 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | F001882 |
| DAF | 1291360 |
| DAF | 1506100 |
| DOLL | 8143272 |
| ERF | 1065259 |
| EVOBUS | 8025172000 |
| EVOBUS | 8025172000NEU |
| FAYMONVILLE | 0978 |
| FELDBINDER | 1738 |
| FORD | 4C465A687AA |
| FREIGHTLINER | TDAS4630320200 |
| FRUEHAUF | CF351925F001882 |
| FRUEHAUF | F001882 |
| FRUEHAUF | UFA1449001 |
| FRUEHAUF | 3766-010 |
| FRUEHAUF | GV66002410 |
| GOLDHOFER | 159118 |
| HAMANA | GV66002410 |
| HENDRICKSON | 4630320200 |
| IRISBUS | 500002862 |
| IVECO | 42089956 |
| IVECO | 500002862 |
| KEMPF | 2128001 |
| KENWORTH | S4630320200 |
| KRONE | 945047 |
| KRONE | 9450471 |
| KRONE | 5009450471 |
| KRONE | 500945047 |
| KÄSSBOHRER | 80251720000 |
| KÄSSBOHRER | 21151103110 |
| KÖGEL | 77414 |
| KÖGEL | 774140 |
| LANGENDORF | 1142217 |
| LECITRAILER | 4110281 |
| LEYLAND DAF | FBU3132 |
| LEYLAND DAF | EXABRB614 |
| LIEBHERR | 502918101 |
| LOHR | A05030209 |
| LOHR | A05030208 |
| MACK | 6300-4630320200 |
| MAN | 81436196004 |
| MAN | 81436196006 |
| MAN | 1065259 |
| MANAC | 223-653 |
| MERCEDES-BENZ | 0003275125 |
| MERCEDES-BENZ | 0003290425 |
| MERCEDES-BENZ | 0003290825 |
| MERITOR | S4630320200 |
| NIPPON TREX | 910045-00012 |
| NISSAN | 522509X500 |
| NOMA | 9206944 |
| NOOTEBOOM | 309104 |
| NOOTEBOOM | 0309104 |
| NOOTEBOOM | 0567810 |
| ORTHAUS | 49530201000 |
| ORTHAUS | 495149 |
| OTOKAR | F001882 |
| PACCAR | CV118432 |
| PETERBILT | S4630320200 |
| RENAULT | 5001871034 |
| RENAULT | 5000791019 |
| SAF | 4425011900 |
| SCANIA | 2089910 |
| SCHMITZ CARGOBULL | 050506 |
| SCHMITZ CARGOBULL | 80251720000 |
| SCHMITZ CARGOBULL | SO50506 |
| SCHMITZ CARGOBULL | 50506 |
| SCHMITZ CARGOBULL | S050506 |
| SCHWARZMÜLLER | 3661 |
| STEYR | 99100360046 |
| STEYR | 99100362124 |
| TIRSAN | 21151103110 |
| TOHO | T852-077 |
| UD TRUCKS | 522509X500 |
| VAN HOOL | 637213060 |
| VOLVO | 6773736 |
| VOLVO | 1698530 |
| VOLVO | WAB4630320200 |
| VOLVO | 22349016 |
| YUTONG | 350600191 |
| YUTONG | 3506-00191 |
| ZORZI | 1013121 |
