Description

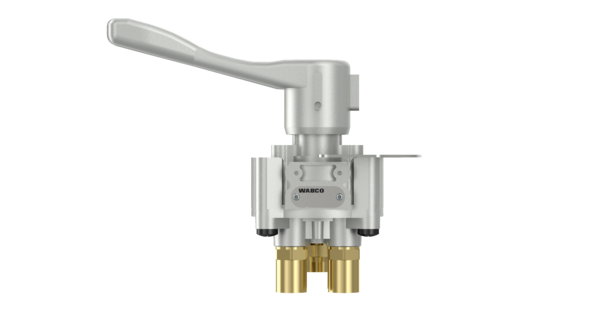

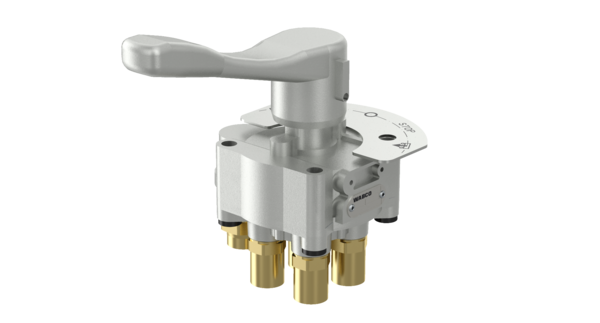

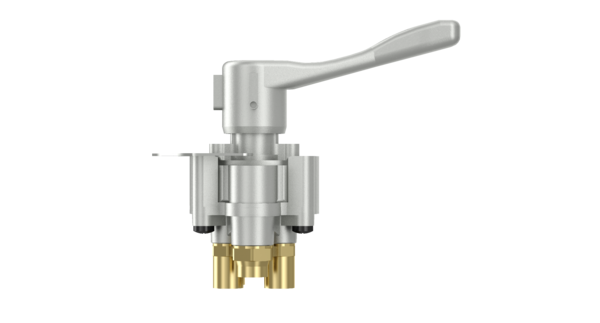

Rotary Slide Valve
Part Number: 4630322200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.4853 |
| Comments | With fittings |
| Distance between holes | 55 mm |
| Handle length | 122 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 4 x M8 |
| Port thread 1 | Ø 8 x 1 |
| Port thread 21 | Ø 8 x 1 |
| Port thread 22 | Ø 8 x 1 |
| Port thread 23 | Ø 8 x 1 |
| Port thread 24 | Ø 8 x 1 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Without Dead man’s switch |
| GTIN | 04057875212614 |
| Size (mm x mm x mm) | 158.5 x 160 x 98 |
| UPC | 193133305859 |
| Weight (kg) | 1.3 |
| Weight (lb) | 2.9 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KRONE | 515003585 |
| KÖGEL | 6503484 |
| SCANIA | 2089913 |
