Description

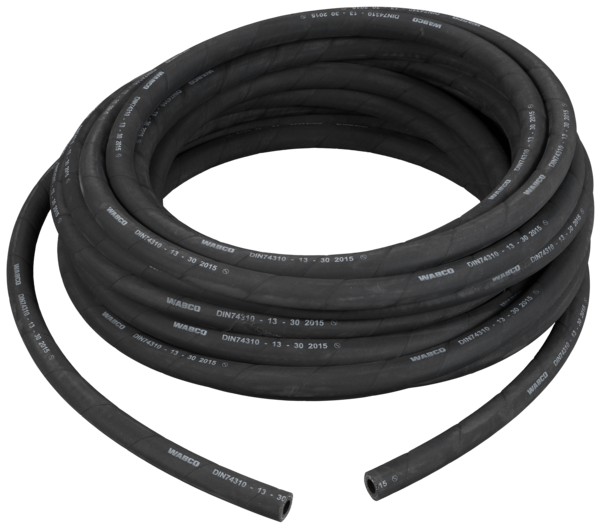

Roll 20m hose DIN74310-13×6
Part Number: 8288770006
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Rubber |
| Calculated Volume (dm³) | 45.902 |
| Color | Black/Black |
| Comments | Wrapped |
| Diameter | 13.0 x 6.0 mm, 13.0 mm |
| Inner diameter | 13.0 mm |
| Length | 20.0 m |
| Max. operating pressure | 10.0 bar |
| Outer diameter | 25.0 mm |
| Product category | Component |
| Technical specification | OE specification |
| Temperature range | -40°C to +70°C |
| Tube diameter | 13 x 6 mm |
| Type | Ø 13.0 x 6.0 mm |
| Version | Without fittings |
| GTIN | 04057875246329 |
| Size (mm x mm x mm) | 496 x 482 x 192 |
| UPC | 193133409212 |
| Weight (kg) | 9.883 |
| Weight (lb) | 21.788 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1519048 |
| DAF | 1519660 |
| JOHN DEERE | Z65269 |
| OTOKAR | AIF0010 |
| SCHMITZ CARGOBULL | 1060781 |
| SCHMITZ CARGOBULL | INS0200003 |
