Description

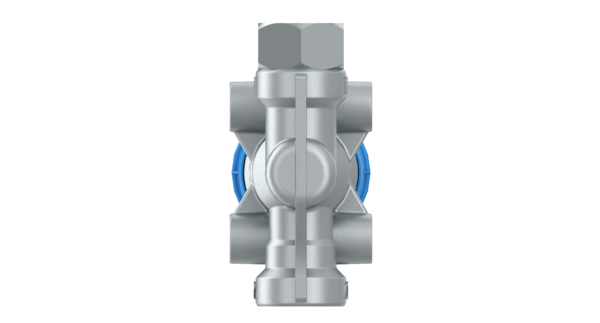

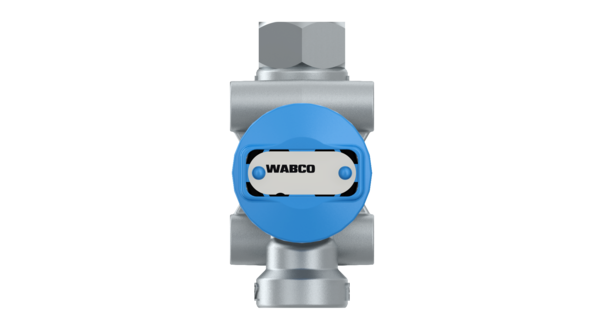

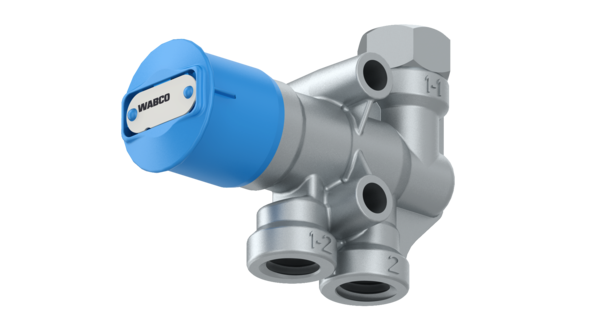

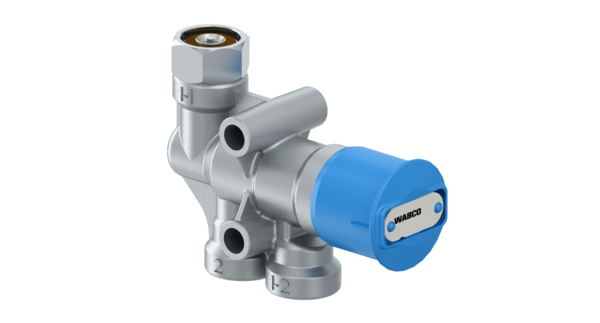

Release Valve
Part Number: 9630060070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.2814 |
| Color | Knob – Blue |
| Distance between holes | 37 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x Ø 8.5 mm |
| Nominal diameter | 6.0 mm |
| Port thread 1-2 | M16 x 1.5 |
| Port thread 2 | M16 x 1.5 |
| Port thread 3 | Flap Exhaust |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Release valve |
| GTIN | 04057875298571 |
| Size (mm x mm x mm) | 88.5 x 79.5 x 40 |
| UPC | 193133371991 |
| Weight (kg) | 0.161 |
| Weight (lb) | 0.355 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DOLL | 7124797 |
| SCANIA | 1935583 |
