Description

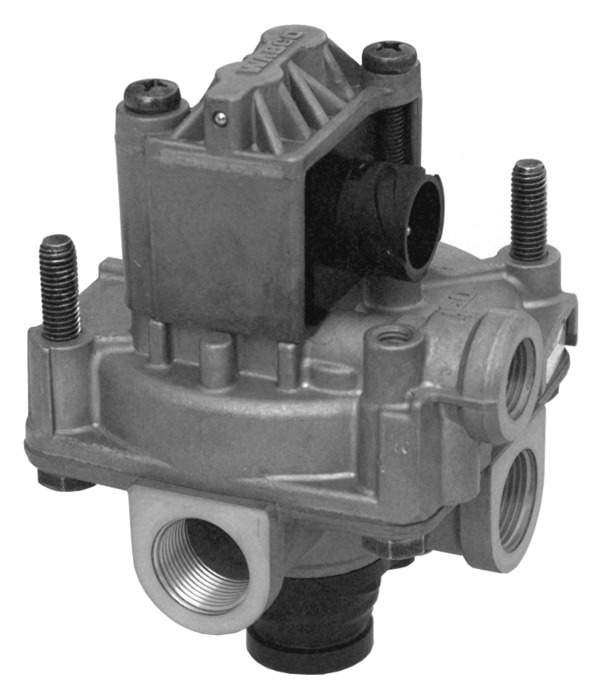

Relay Valve, ABS
Part Number: 4721950340
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.664 |
| Distance between bolts | 75×75 mm |
| Electrical connection | Bayonet DIN 72585 A1-3.1-Sn/K1 |
| Max. operating pressure | 10.0 bar |
| Mounting | 4 x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | 2x M22 x 1.5 |
| Port thread 3 | Snap-on contour |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Protection class | IP 66, IP 69K |
| Rated current | 2220 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 7895851028289 |
| Size (mm x mm x mm) | 144 x 106 x 109 |
| UPC | 193133311751 |
| Weight (kg) | 0.874 |
| Weight (lb) | 1.9268 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAYMONVILLE | 201820 |
| LOHR | A05021219 |
| SCHWARZMÜLLER | 100993 |
