Description

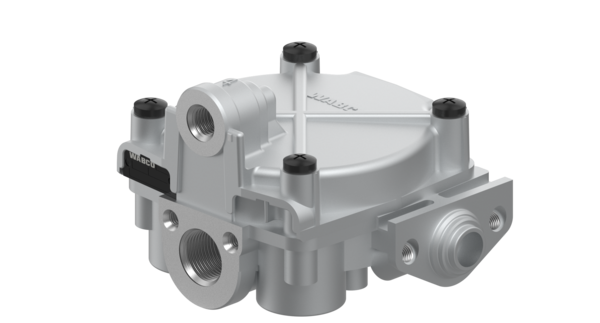

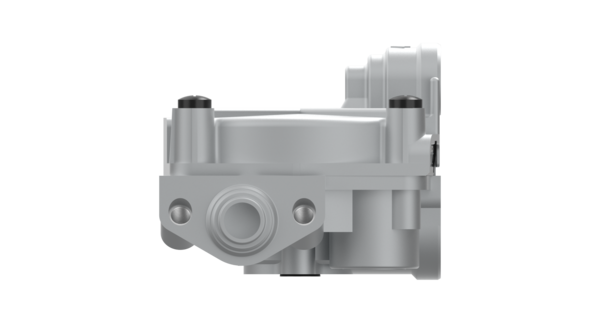

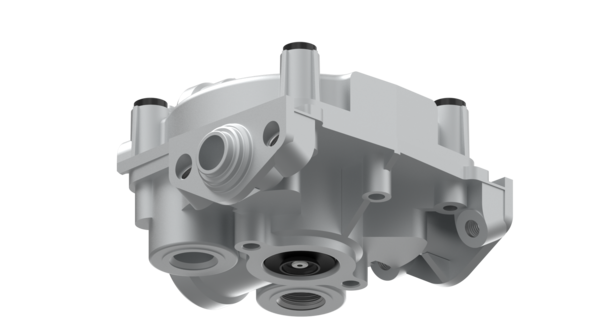

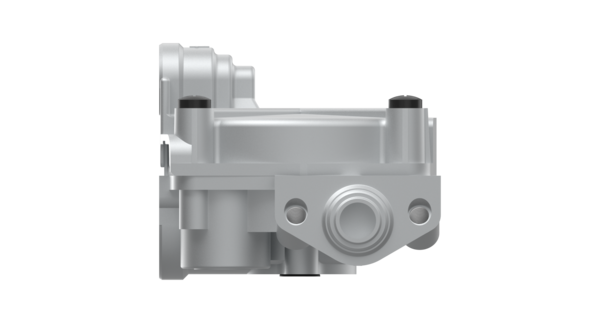

Relay Valve
Part Number: 9730110240
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.0982 |
| Comments | With flange for ABS devices-rear axle 4725001050 |
| Exhaust | Snap-on contour JED – 463 |
| Max. operating pressure | 13.0 bar |
| Port thread 1 | 1/2″ – 14 Dry Seal NPTF |
| Port thread 2 | 3/8″ – 18 Dry Seal NPTF |
| Port thread 3 | Exhaust |
| Port thread 4 | 1/4″ – 18 NPTF |
| Predominance | 0.20 bar |
| Product category | Device |
| Regulating ratio | 1:1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Version | Pressure reduction |
| GTIN | 7895851052284 |
| Packaging size (mm x mm x mm) | 240 x 190 x 135 |
| Packaging volume (dm³) | 6.16 |
| Size (mm x mm x mm) | 131 x 101 x 83 |
| UPC | 193133450184 |
| Weight (kg) | 0.682 |
| Weight (lb) | 1.5036 |
