Description

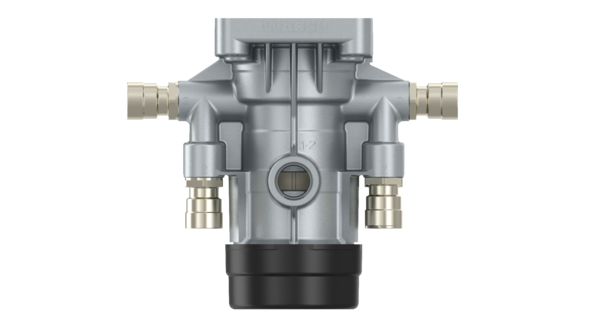

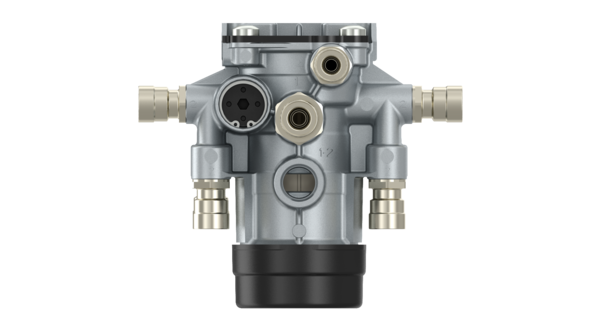

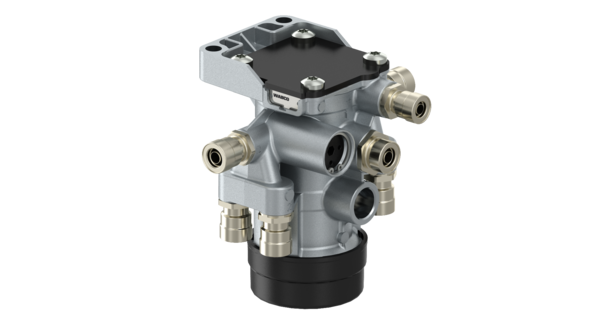

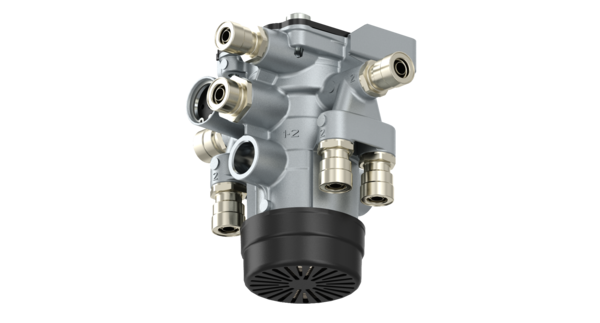

Relay Emergency Valve
Part Number: 9710020610
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.664 |
| Distance between holes | 71 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | Ø 12×1.5 |
| Port thread 12 | M22 x 1.5 JED-152 |
| Port thread 2 | 6x Ø 12×1.5 |
| Port thread 3 | Silencer |
| Port thread 4 | Ø 10×1 |
| Predominance | 0 |
| Product category | Device |
| Range of adjustment | 0.7 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057876223497 |
| Size (mm x mm x mm) | 169 x 193 x 143 |
| UPC | 193133532101 |
| Weight (kg) | 1.637 |
| Weight (lb) | 3.609 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | 605304100 |
| DAF | 1519297R |
| DAF | 1518258 |
| DAF | 1325335R |
| DAF | 1325335 |
| DAF | 1519296 |
| DOLL | 7078317 |
| FELDBINDER | 006713 |
| FRUEHAUF | CF351193 |
| FRUEHAUF | AJC0070001 |
| FRUEHAUF | AJA03131AJC00701 |
| FRUEHAUF | AFA4271005 |
| HENDRICKSON | 9710021520 |
| KEMPF | 2101005 |
| KENWORTH | S9710021520 |
| KRONE | 945017 |
| KRONE | 500945017 |
| KÖGEL | 76275 |
| LANGENDORF | 1133359 |
| LOHR | A05020308 |
| MAN | N2521160023 |
| MERITOR | S9710021520 |
| NEOPLAN | 07110000 |
| OTOKAR | AIF1787 |
| PACCAR | 1325335R |
| PETERBILT | S9710021520 |
| RENAULT | 5021170444 |
| RENAULT | 5021170443 |
| RENAULT | 5021170442 |
| SAF | 4425012600 |
| SCANIA | 2090068 |
| SCANIA | 1738444 |
| SCANIA | 2090066 |
| SCANIA | 2090065 |
| SCHMITZ CARGOBULL | 050024 |
| SCHMITZ CARGOBULL | 50024 |
| SCHWARZMÜLLER | 14255 |
| SCHWARZMÜLLER | 252 |
| VOLVO | WA9710021577 |
| VOLVO | WA9710021527 |
