Description

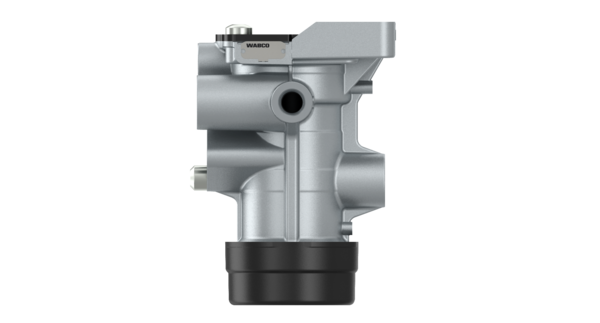

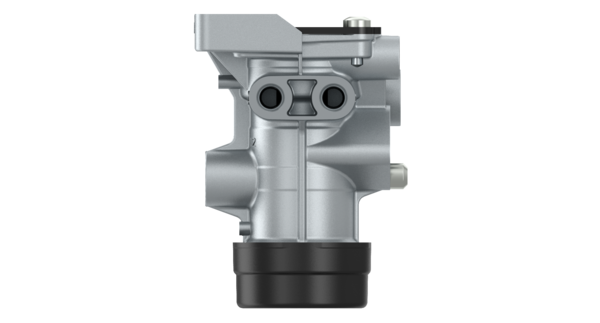

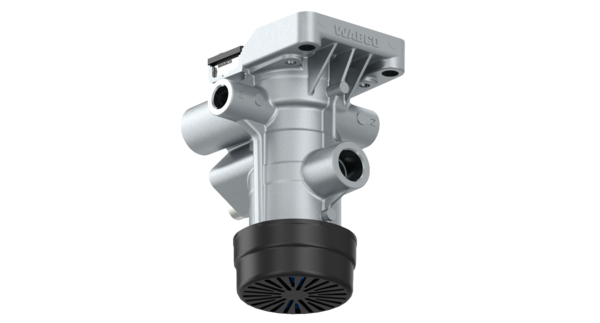

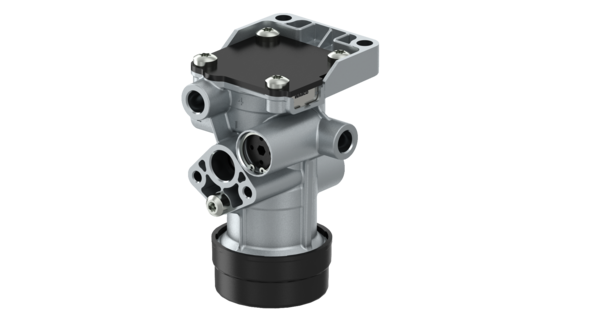

Relay Emergency Valve
Part Number: 9710020250
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.268 |
| Distance between holes | 71 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | M22 x 1.5 JED-152 |
| Port thread 2 | 3x M16 x 1.5 JED-152 |
| Port thread 3 | Silencer |
| Port thread 4 | M16 x 1.5 JED-152 |
| Predominance | without |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057885161339 |
| Size (mm x mm x mm) | 169 x 110 x 122 |
| UPC | 193133534655 |
| Weight (kg) | 1.24 |
| Weight (lb) | 2.734 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | F001122 |
| DAF | 1518259 |
| DAF | 1519302R |
| DAF | 1664345 |
| DAF | 1506171 |
| DOLL | 7078510 |
| FAYMONVILLE | 46031 |
| FELDBINDER | 297449 |
| FELDBINDER | 1031977 |
| FRUEHAUF | F001122 |
| FRUEHAUF | CF351996 |
| FRUEHAUF | 5311-063 |
| GOLDHOFER | 167732 |
| GUERRA | 83433 |
| HAMANA | GV66001420 |
| HENDRICKSON | 9710023010 |
| KENWORTH | S9710027030 |
| KODAIRA | VS70000047 |
| KRONE | 5870375 |
| KRONE | 5058703750 |
| KRONE | 505870375 |
| KRONE | 5816897 |
| KRONE | 58168970 |
| KÖGEL | 6500287 |
| KÖGEL | 349842 |
| LANGENDORF | 1230528 |
| LECITRAILER | 4111290 |
| LOHR | A05101406 |
| LOHR | A05021208 |
| MACK | 6300-9710027030 |
| MAN | N2509990160 |
| MAN | N2509990164 |
| MAN | N2521160026 |
| MAN | N2509990166 |
| MERITOR | S9710027030 |
| NOOTEBOOM | 1745134 |
| NOOTEBOOM | 184726 |
| OTOKAR | AIF0988 |
| PACCAR | 0867714 |
| PACCAR | 1518259 |
| PACCAR | 1519302R |
| PACCAR | 1506171 |
| PACCAR | 1664345 |
| PETERBILT | S9710027030 |
| RENAULT | 5021208823 |
| RENAULT | 5021208564 |
| RENAULT | 5021170448 |
| RENAULT | 5021170447 |
| SCANIA | 2090070 |
| SCANIA | 1912352 |
| SCANIA | 1738442 |
| SCANIA | 1912351 |
| SCHMITZ CARGOBULL | 9710023010 |
| SCHMITZ CARGOBULL | 1042995 |
| SCHMITZ CARGOBULL | 057230 |
| SCHWARZMÜLLER | 62358 |
| SCHWARZMÜLLER | 54789 |
| TOHO | T423-002 |
| VAN HOOL | 10868345 |
| VOLVO | WA9710023010 |
| VOLVO | WA9710028050 |
| ZORZI | 1012018 |
