Description

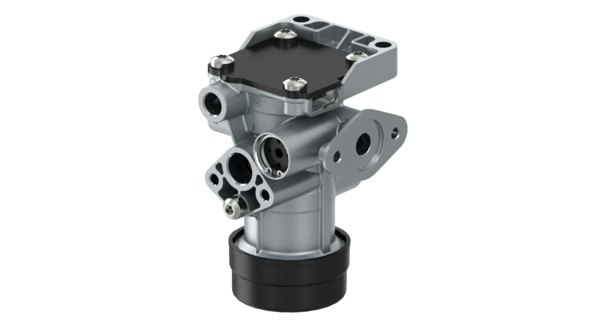

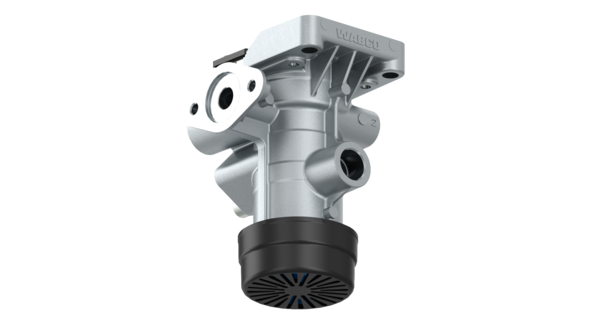

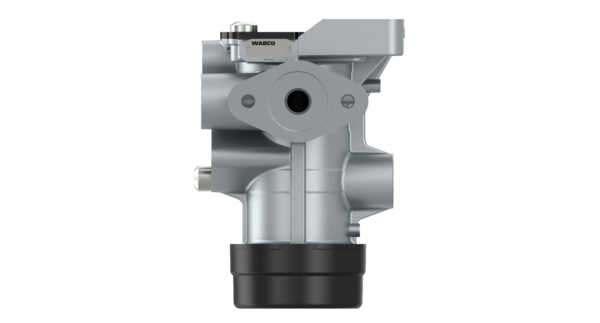

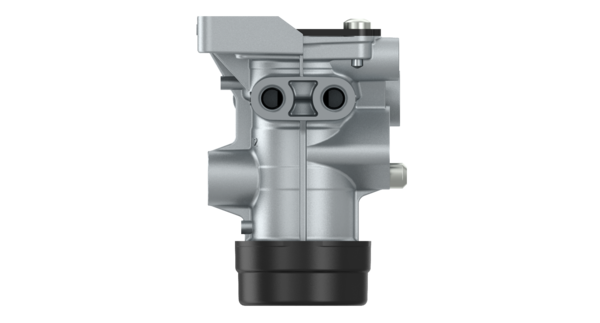

Relay Emergency Valve
Part Number: 9710020300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.309 |
| Distance between holes | 71 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | M22 x 1.5 JED-152 |
| Port thread 2 | 2x M16 x 1.5 JED-152 / 1x Flange M16 x 1.5 JED-152 |
| Port thread 3 | Silencer |
| Port thread 4 | M16 x 1.5 JED-152 |
| Predominance | 0 |
| Product category | Device |
| Range of adjustment | 0.7 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057876223350 |
| Size (mm x mm x mm) | 169 x 112 x 122 |
| UPC | 193133534648 |
| Weight (kg) | 1.276 |
| Weight (lb) | 2.813 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | H03140201 |
| DAF | 0830550R |
| DAF | 1506472R |
| DAF | 0830550 |
| DAF | 830550 |
| DAF | 1506643 |
| DAF | 1519298R |
| DAF | 1518257 |
| DAF | 0816370 |
| FAYMONVILLE | 0925 |
| FELDBINDER | 006705 |
| FREIGHTLINER | TDAS9710021500 |
| FRUEHAUF | CF351054 |
| FRUEHAUF | AJU7602 |
| FRUEHAUF | H03140201 |
| FRUEHAUF | H031402 |
| FRUEHAUF | CF351407 |
| FRUEHAUF | 5311-070-01 |
| GOLDHOFER | 200291 |
| GOLDHOFER | 201993 |
| HENDRICKSON | 9710021500 |
| HENDRICKSON | 9710020000 |
| IRISBUS | 500005829 |
| IVECO | 09988413 |
| IVECO | 500005829 |
| IVECO | 101750 |
| JOHN DEERE | 2480005 |
| JOHN DEERE | WZ2480005 |
| KEMPF | 2101004 |
| KENWORTH | S971-002-150-0 |
| KRONE | 58106060 |
| KRONE | 5810606 |
| KRONE | 505810606 |
| KÖGEL | 79310 |
| LANGENDORF | 1133358 |
| LECITRAILER | 4110321 |
| LECITRAILER | 4110191 |
| LEYLAND DAF | 830550 |
| LIEBHERR | 10170952 |
| LIEBHERR | 10170852 |
| LOHR | A05020403 |
| LOHR | A05020306 |
| MACK | 8235-S9710021500 |
| MACK | 6300-9710021500 |
| MAFI | 0005663802 |
| MAN | N2523019016 |
| MAN | 82580000060 |
| MERITOR | S9710021500 |
| NEOPLAN | 07110000 |
| NOOTEBOOM | 309044 |
| ORTHAUS | 49500111000 |
| PACCAR | 0830550R |
| PACCAR | 1506643 |
| PACCAR | 0865625R |
| PACCAR | 1518257 |
| PETERBILT | S971-002-150-0 |
| RENAULT | 5021170445 |
| RENAULT | AG46729002 |
| RENAULT | 5021170441 |
| RENAULT | 5021170440 |
| RENAULT | 5021170439 |
| RENAULT | 1108600 |
| RENAULT | 0001108600 |
| SCANIA | 1738443 |
| SCANIA | 579009 |
| SCANIA | 0579009 |
| SCANIA | 1738441 |
| SCANIA | 2090064 |
| SCANIA | 2090062 |
| SCHMITZ CARGOBULL | 1021172 |
| SCHMITZ CARGOBULL | 050005 |
| SCHMITZ CARGOBULL | 9710021500 |
| SCHMITZ CARGOBULL | 54354 |
| SCHMITZ CARGOBULL | 054354 |
| SCHMITZ CARGOBULL | 9710020000 |
| SCHWARZMÜLLER | 4631 |
| VAN HOOL | 637206780 |
| VOLVO | 3570408 |
| VOLVO | WAB9710021500 |
| VOLVO | WA9710021507 |
| VOLVO | 11018647 |
