Description

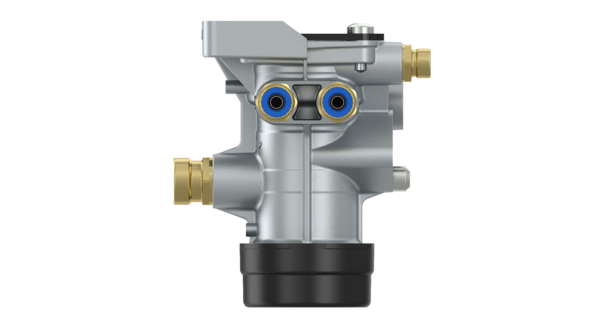

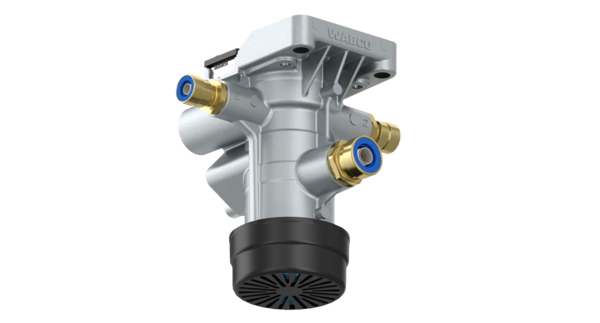

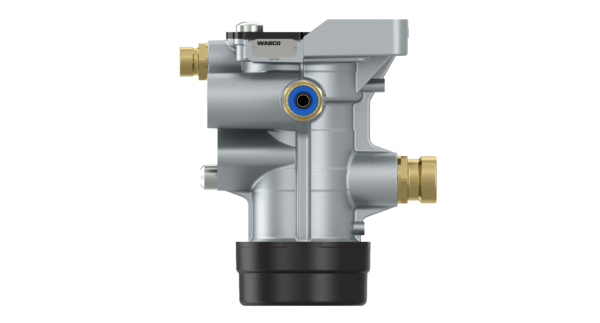

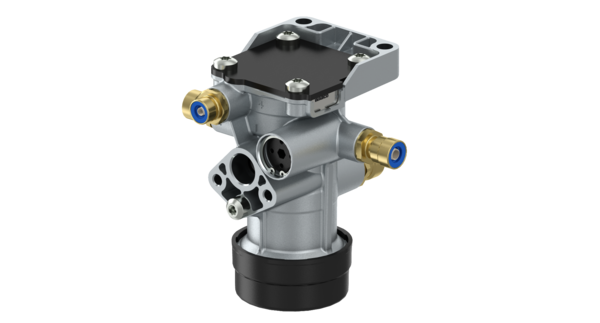

Relay Emergency Valve
Part Number: 9710020210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.211 |
| Distance between holes | 71 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | Ø 15×1.5 |
| Port thread 2 | 3x Ø 10×1 |
| Port thread 3 | Silencer |
| Port thread 4 | Ø 8×1 |
| Predominance | 0 |
| Product category | Device |
| Range of adjustment | 0.7 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057876223343 |
| Size (mm x mm x mm) | 169 x 165 x 151 |
| UPC | 193133534686 |
| Weight (kg) | 1.447 |
| Weight (lb) | 3.19 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | F004555 |
| DAF | 1359971 |
| DAF | 1359971R |
| DAF | 1519300 |
| DAF | 0867412 |
| DAF | 1519301 |
| DAF | 865622 |
| DAF | 0865622 |
| DOLL | 8143072 |
| FAYMONVILLE | 10553 |
| FELDBINDER | 005353 |
| FREIGHTLINER | TDAS9710023000 |
| FRUEHAUF | CF352393 |
| FRUEHAUF | F004555 |
| GOLDHOFER | 163414 |
| HENDRICKSON | HB100197 |
| HENDRICKSON | 9710023040 |
| KEMPF | 2101010 |
| KENWORTH | S971-002-300-0 |
| KRONE | 58111590 |
| KRONE | 5811159 |
| KÄSSBOHRER | 82839440002 |
| KÖGEL | 336489 |
| LANGENDORF | 1133360 |
| LECITRAILER | 4110691 |
| LIEBHERR | 10102274 |
| LIEBHERR | 10010314 |
| MACK | 6300-9710023000 |
| MAN | N2521160024 |
| MAN | N2521160025 |
| MAN | N2509990162 |
| MAN | ZG046530002 |
| MERITOR | S9710023000 |
| NOOTEBOOM | 308033 |
| NOOTEBOOM | 08061 |
| ORTHAUS | 49500111001 |
| PACCAR | 1359971R |
| PACCAR | 0867412 |
| PACCAR | 0865622 |
| PETERBILT | S971-002-300-0 |
| RENAULT | 5021208761 |
| SAF | 05400011300 |
| SCANIA | 2090069 |
| SCANIA | 1738440 |
| SCANIA | 1935615 |
| SCANIA | 1935616 |
| SCANIA | 2090071 |
| SCHMITZ CARGOBULL | 052504 |
| SCHMITZ CARGOBULL | 9710023000 |
| SCHMITZ CARGOBULL | 52504 |
| SCHMITZ CARGOBULL | INS0120027 |
| SCHMITZ CARGOBULL | 82839440002 |
| SCHMITZ CARGOBULL | 114015 |
| SCHWARZMÜLLER | 7241 |
| VAN HOOL | 10536639 |
| VAN HOOL | 10556826 |
| VOLVO | WAB9710023000 |
| VOLVO | WA9710023007 |
| VOLVO | WA9710023040 |
| ZORZI | 6106037 |
| ZORZI | 6106038 |
