Description

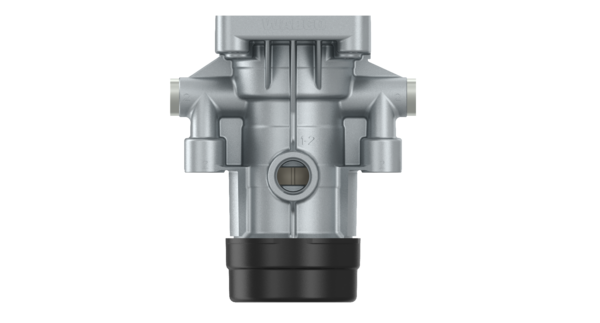

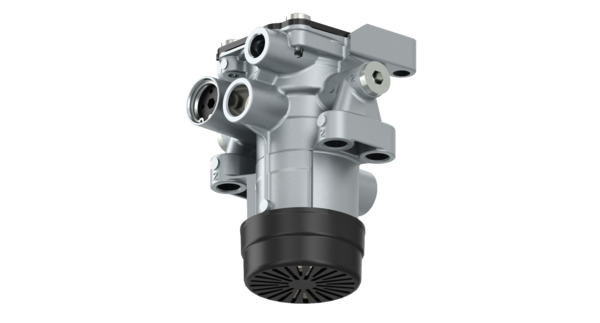

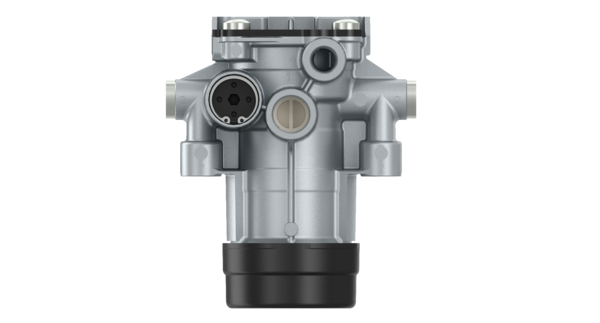

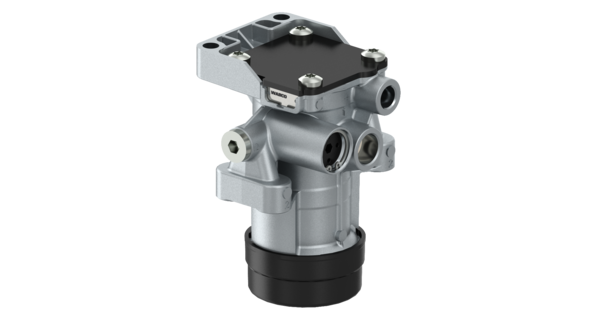

Relay Emergency Valve
Part Number: 9710020420
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.825 |
| Distance between holes | 71 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 11.0 mm |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 12 | M22 x 1.5 JED-152 |
| Port thread 2 | 4x M16 x 1.5 JED-152 |
| Port thread 3 | Silencer |
| Port thread 4 | M16 x 1.5 JED-152 |
| Predominance | without |
| Product category | Device |
| Range of adjustment | 0.7 bar |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Only Emergency valve |
| GTIN | 04057885760099 |
| Size (mm x mm x mm) | 170 x 150 x 150 |
| UPC | 193133532118 |
| Weight (kg) | 1.28 |
| Weight (lb) | 2.822 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S971-005-002-0 |
| MACK | 6300-9710050000 |
| MERITOR | S9710050020 |
| MERITOR | R955281865 |
| PETERBILT | S971-005-002-0 |
| SCANIA | 2090230 |
| VOLVO | WAB9710050000 |
