Description

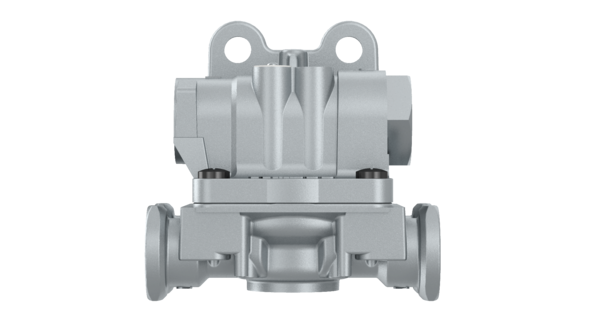

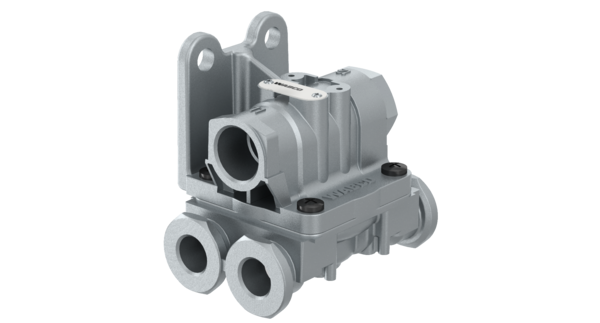

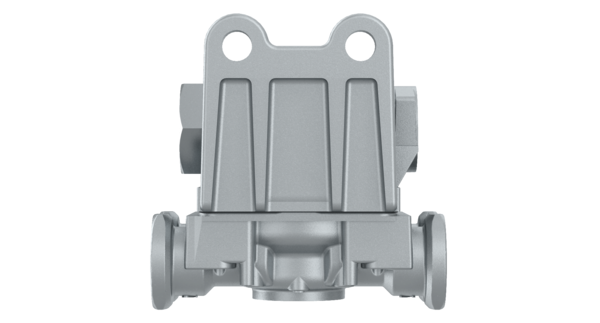

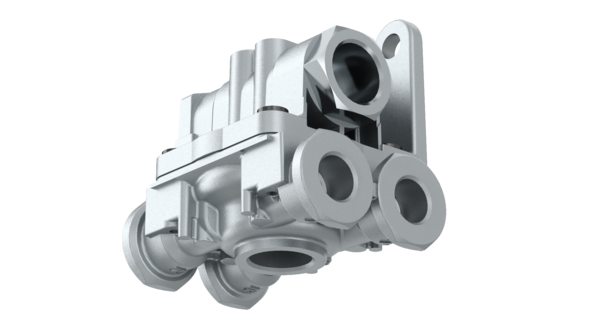

Quick Release Valve
Part Number: 9735000510
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.56232 |
| Comments | With integrated double cut-off valve |
| Distance between bolts | 38 mm |
| Exhaust | M22 x 1.5 |
| Max. operating pressure | 12.0 bar |
| Mounting | 2x Ø 9.5 mm |
| Port thread 11 | M22 x 1.5 |
| Port thread 12 | M22 x 1.5 |
| Port thread 2 | 4x M16 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 3 | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875304685 |
| Size (mm x mm x mm) | 90 x 88 x 71 |
| UPC | 193133450337 |
| Weight (kg) | 0.435 |
| Weight (lb) | 0.95901 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | M05965901 |
| DAF | 1505155 |
| DOLL | 7060959 |
| FAYMONVILLE | 13183 |
| FELDBINDER | 006715 |
| FRUEHAUF | M05965901 |
| GOLDHOFER | 165628 |
| IRIZAR | 8015526 |
| KEMPF | 2110006 |
| KENWORTH | S973-500-051-0 |
| KRONE | 5815237 |
| KRONE | 58152370 |
| KRONE | 505815237 |
| KÖGEL | 339747 |
| LANGENDORF | 1133402 |
| MACK | 6300-9735000510 |
| MAN | N2521160028 |
| MERITOR | S9735000510 |
| NOOTEBOOM | 2090000 |
| ORTHAUS | 49500462005 |
| OTOKAR | M05965901 |
| PACCAR | 1505155 |
| PETERBILT | S973-500-051-0 |
| RENAULT | 5021170470 |
| SCANIA | 1788954 |
| SCHMITZ CARGOBULL | 1043983 |
| SCHWARZMÜLLER | 40871 |
| VAN HOOL | 10733528 |
| VOLVO | WA9735000510 |
| VOLVO | WAB9735000510 |
