Description

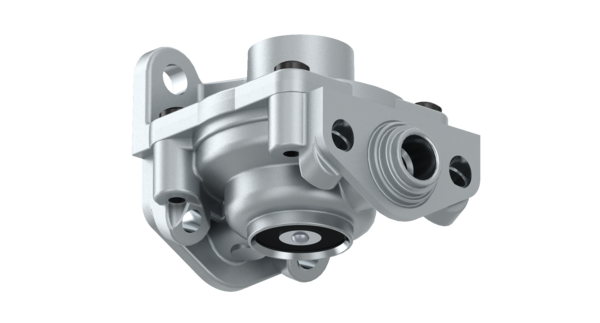

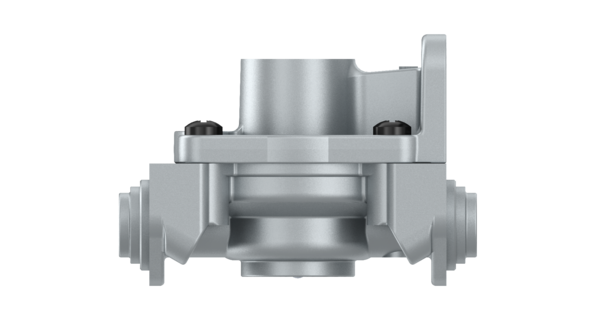

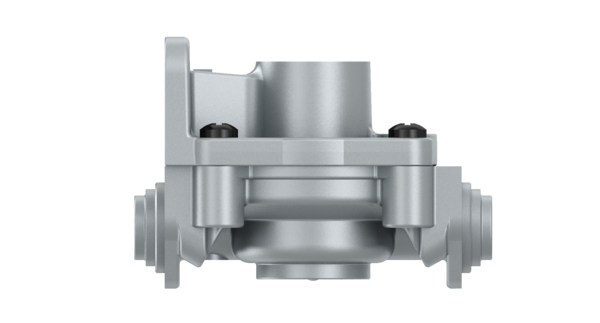

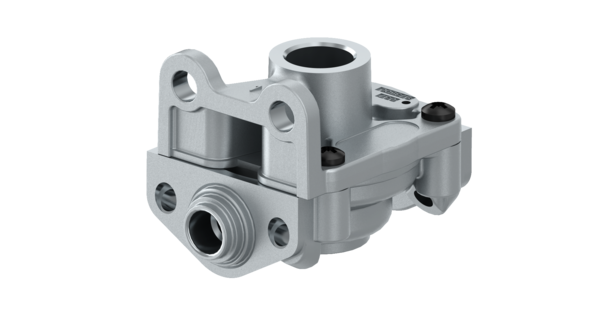

Quick Release Valve
Part Number: 9735001050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.40511 |
| Distance between bolts | 38 mm |
| Exhaust | Flap exhaust |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9.5 mm |
| Port thread 1 | 1/2″ – 14 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 7895851080942 |
| Packaging size (mm x mm x mm) | 200 x 200 x 40 |
| Packaging volume (dm³) | 1.6 |
| Size (mm x mm x mm) | 66 x 93 x 66 |
| UPC | 193133450351 |
| Weight (kg) | 0.302 |
| Weight (lb) | 0.6658 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS9735001050 |
| KENWORTH | S973-500-105-0 |
| MACK | 8235-S9735001050 |
| MACK | 6300-9735001050 |
| MERITOR | S9735001050 |
| PETERBILT | S973-500-105-0 |
| VOLVO | TDA S9735001050 |
| VOLVO | WAB9735001050 |
