Description

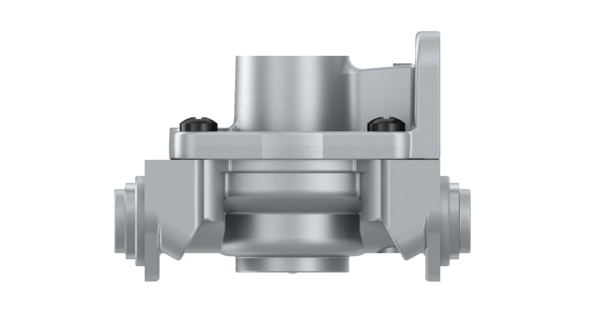

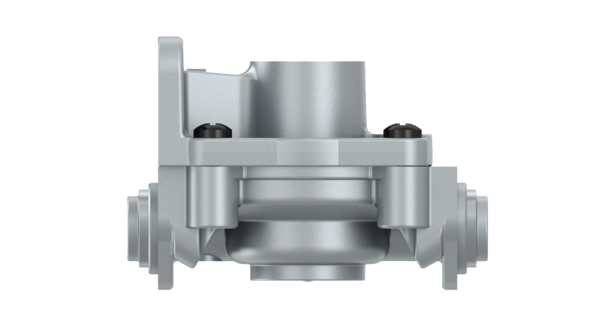

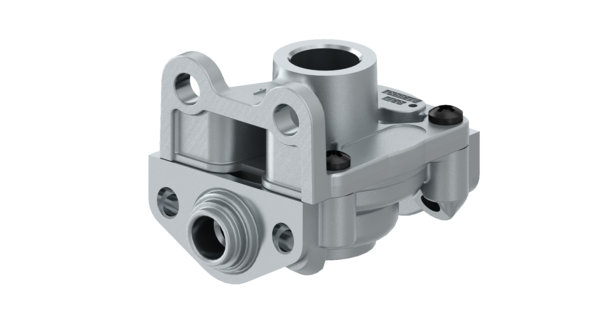

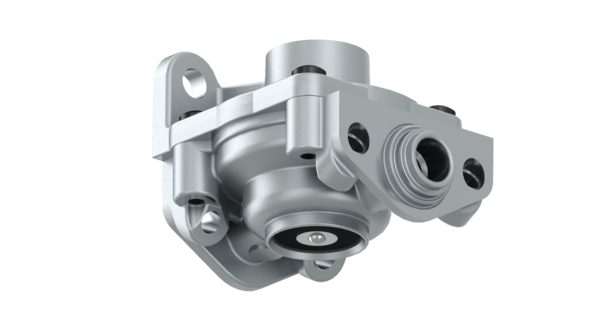

Quick Release Valve
Part Number: 9735001060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.41548 |
| Distance between bolts | 38 mm |
| Exhaust | Flap exhaust |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9.5 mm |
| Port thread 1 | 1/2″ – 14 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| GTIN | 04057875304777 |
| Size (mm x mm x mm) | 65 x 68 x 94 |
| UPC | 193133450368 |
| Weight (kg) | 0.3 |
| Weight (lb) | 0.66139 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS9735001060 |
| KENWORTH | S973-500-106-0 |
| MACK | 8235-S9735001060 |
| MACK | 6300-9735001060 |
| MERITOR | S9735001060 |
| PETERBILT | S973-500-106-0 |
| VOLVO | S9735001060 |
| VOLVO | WAB9735001060 |
